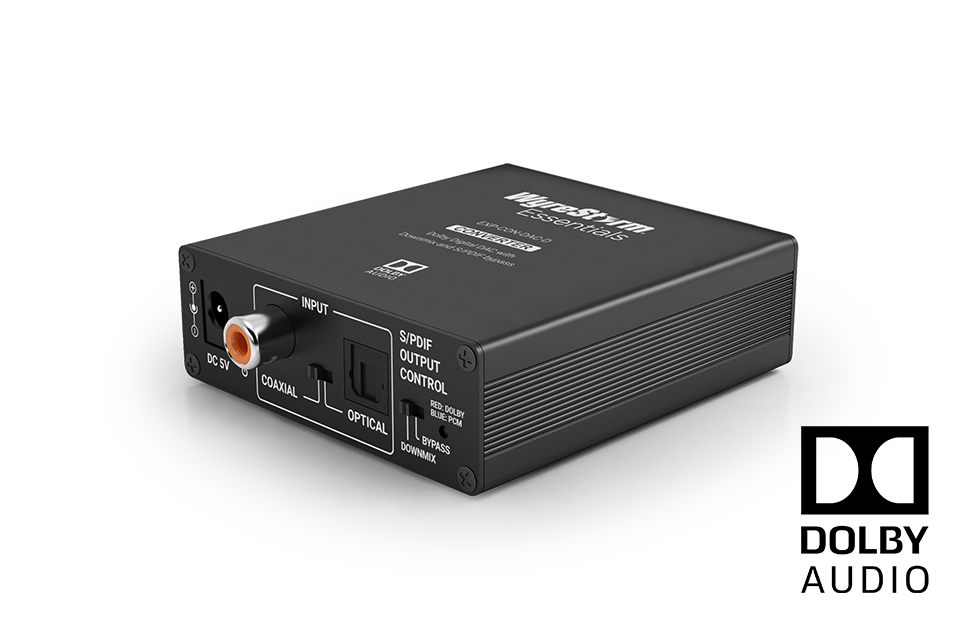

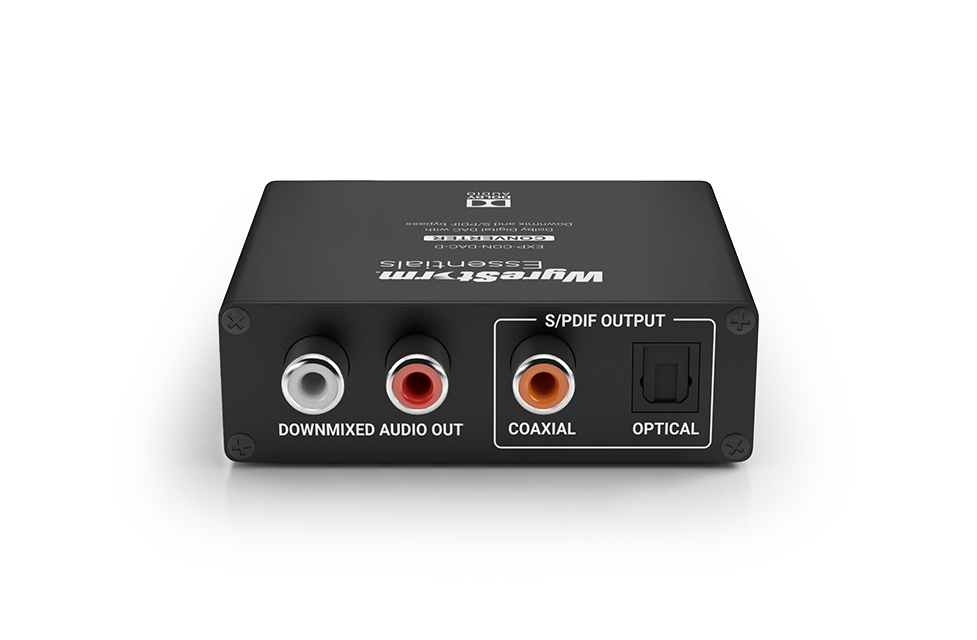

The WyreStorm EXP-CON-DAC-D is a Digital to Analogue Audio Converter that downmixes S/PDIF audio encoded as Dolby Digital 5.1 from a suitable coaxial or TOSLINK audio source to analogue stereo.

Stok kodu: EXP-CON-DAC-D Kategoriler: ,

The WyreStorm EXP-CON-DAC-D is a Digital to Analogue Audio Converter that downmixes S/PDIF audio encoded as Dolby Digital 5.1 from a suitable coaxial or TOSLINK audio source to analogue stereo.

Marka

WyreStorm
Model

EXP-CON-DAC-D
Inputs

1x Coaxial In: S/PDIF Coaxial Digital, 1x Optical In: TOSLINK (Digital Optical)
Outputs

1x L/R Audio: RCA Stereo, 1x Coaxial: S/PDIF Digital Coaxial, 1x Optical: TOSLINK Digital Optical
Audio Formats

2ch PCM (24bit/ 96 kHz max), Dolby Digital 5.1
Output Impedance

552Ω
Output Voltage

2.0 V RMS @ Max Input (0dBFS)
Frequency Response

20Hz~20kHz <+/-0.5dB
Signal to Noise Ratio

> 9 3 dB (20Hz ~ 20kHz)
THD + Noise (floor)

0.006 % ~0.042% ( 1kHz at 2V RMS )
Power Supply

5V DC 1A
Max Power Consumption

0.475W
Operating Temperature

32°F ~ 113°F (0°C ~ 45°C)10% ~ 90%, non-condensing
StorageTemperature

-4°F to ~ 158°F (-20°C ~ +70°C)10% ~ 90%, non-condensing
Maximum BTU

1.6 BTU/hr
Rack Units/Wall Box

<1U
Height

24mm/0.94in
Width

80mm/3.15in
Depth

76mm/2.99in
Weight

107g
