WyreStorm EX3-100-EARC 4K60 HDbaseT 3.0 Extender with eARC offers seamless high-definition audio/video transmission over long distances for an enhanced entertainment experience.
HDMI Extender

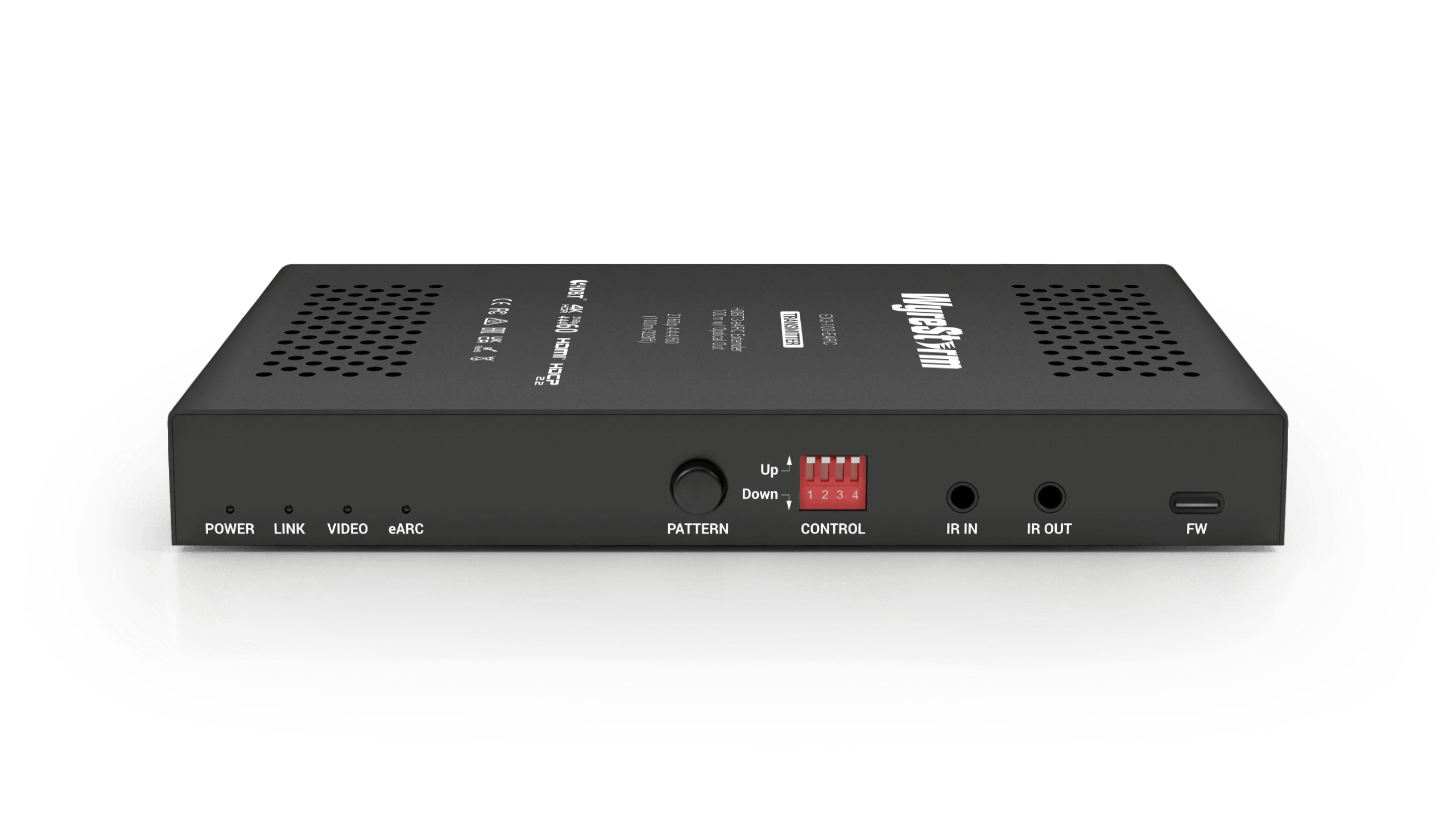

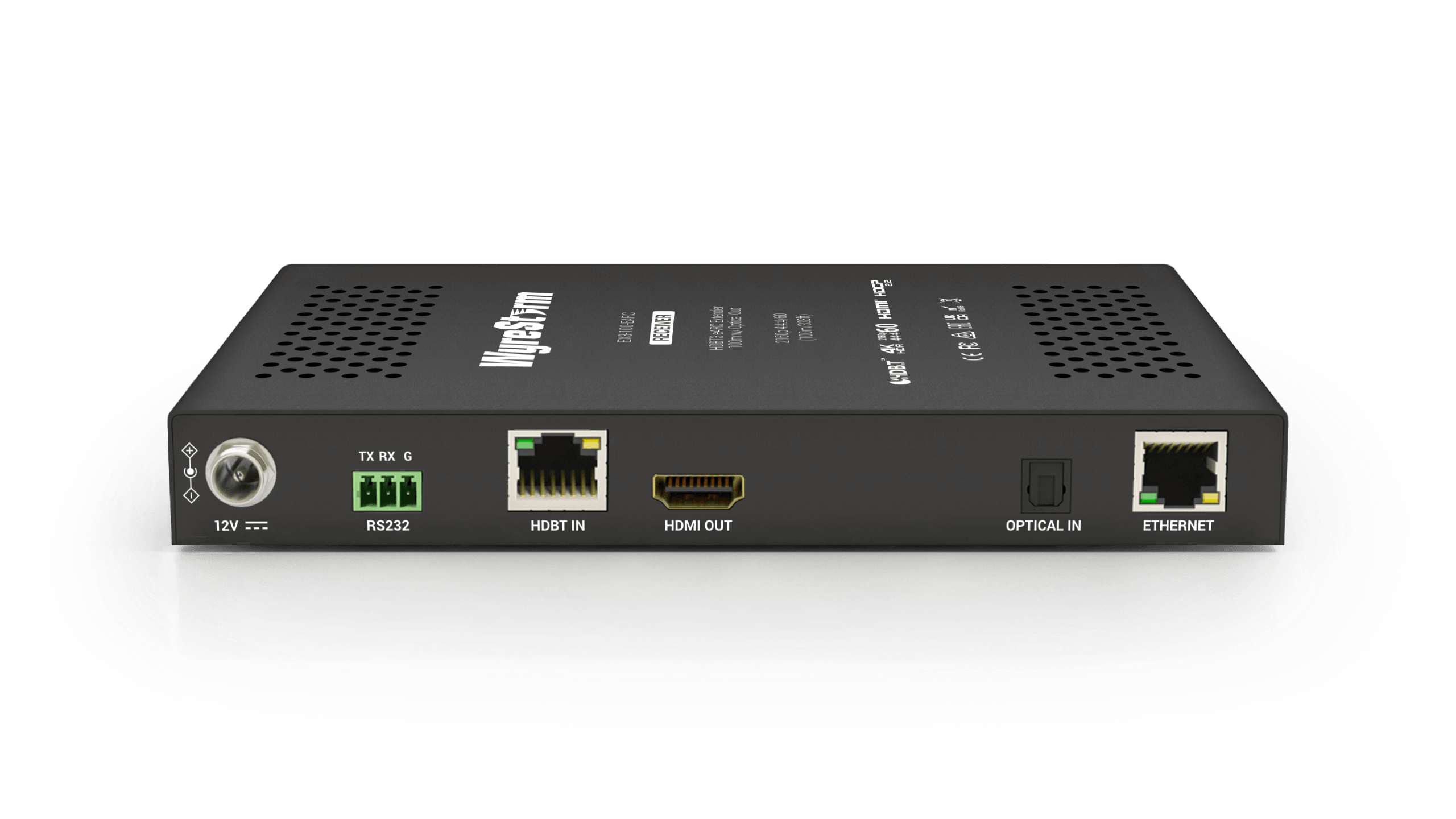

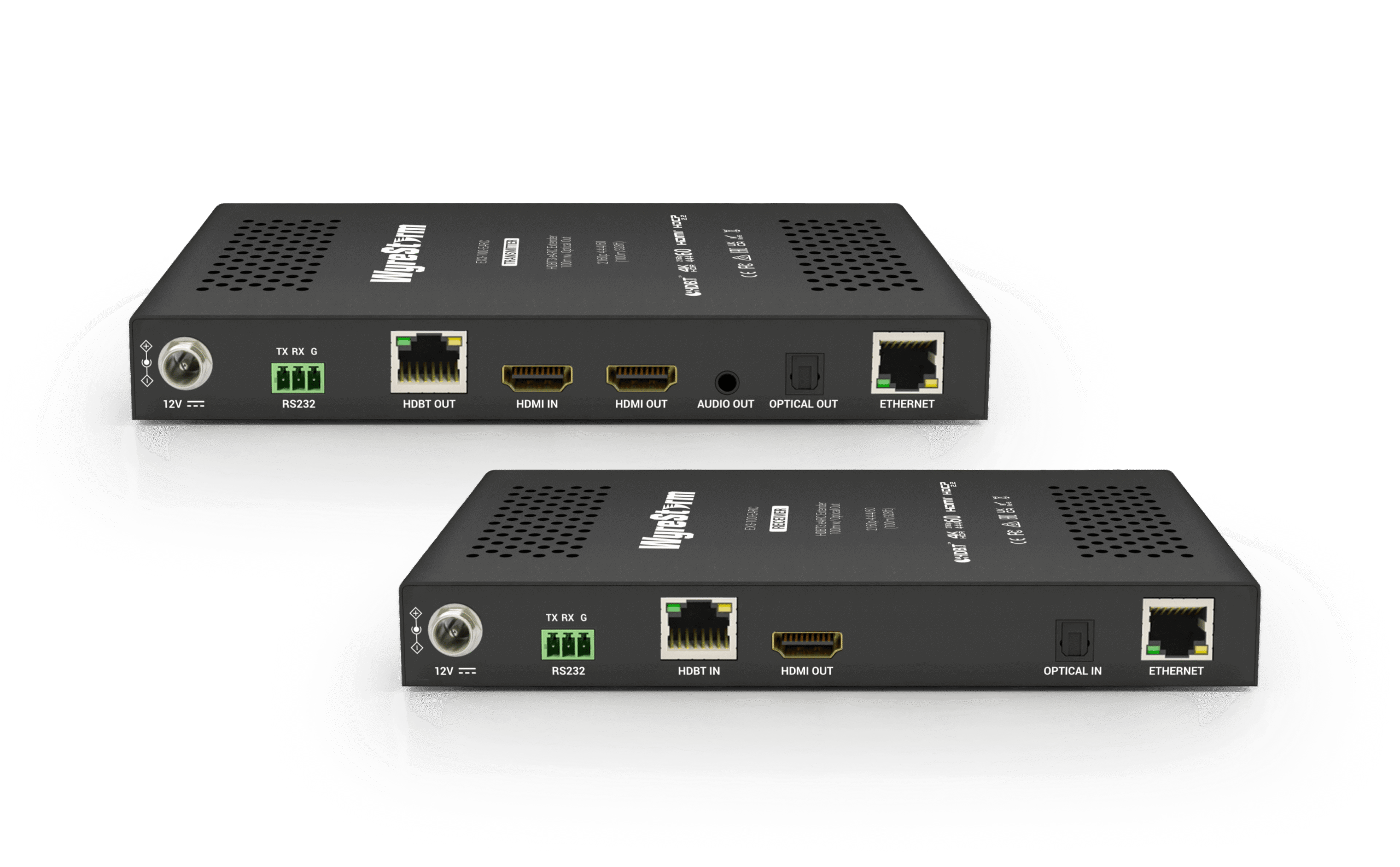

WyreStorm EX3-100-EARC 4K60 HDbaseT 3.0 Extender with eARC
WyreStorm EX3-100-EARC 4K60 HDbaseT 3.0 Extender with eARC offers seamless high-definition audio/video transmission over long distances for an enhanced entertainment experience.
| Marka | WyreStorm |
|---|---|
| Model | EX3-100-EARC |
| Inputs | Transmitter : 1x HDMI Receiver : 1x HDBaseT IN, 1x Optical IN |
| Outputs | Transmitter : 1x HDBaseT OUT, 1x HDMI Loop Out, 1x Optical Out Receiver : 1x HDMI |
| Video Resolutions (Max) | Video Resolutions 1920x1080p @ 60Hz 3840×2160 @60Hz 4:4:4 12bit (HDR/DV) 5120×2160 @30Hz 5120×2160 @60Hz 4:2:0 |
| Output Video Encoding | Encoding Data Rate: 10.2Gbps End to End Latency: 10μs (microseconds) |
| Ethernet | Ethernet Pass-through of up to 1Gb |
| Audio Formats | HDMI In : 2ch Analog/PCM Multichannel : LPCM up to DTS-X , DTS-HD Master Audio, Dolby Atmos eARC : 2ch Analog/PCM Multichannel : LPCM up to DTS-X and Dolby Atmos |
| Supported Standards | DCI, RGB, HDR10, Dolby Vision, HLG, BT.2020, BT.2100 |
| Maximum Pixel Clock | 600MHz |
| HDMI | HDMI, HDCP 2.2, EDID, CEC Pass-through |
| HDBaseT | HDMI, HDCP 2.2, EDID, RS-232 Pass-through, IR Pass-Through, 2- WAY PoH, CEC Pass-Through |
| IR | 1x IR RX: 3.5mm (1/8in) TRS Stereo 1x IR TX: 3.5mm (1/8in) TS Mono (Transmitter & Receiver) |
| RS-232 | 1x RS-232: 3-pin Phoenix (Transmitter and Receiver) |
| Power Supply | 12V DC 2A |
| Operating Temperature | 32°F ~ 113°F (0°C ~ 45°C), 10% ~ 90%, non-condensing |
| Storage Temperature | -4°F to ~ 158°F (-20°C ~ +70°C), 10% ~ 90%, non-condensing |
| Length x Width x Height | 190mm x 115mm x 23mm |
| Safety and Emission | CE, FCC, RoHS, RCM, EAC, UKCA |
| Max. Power Consumption | ??? |
