The EX-35-8K is a robust solution for extending high-bandwidth video and control signals for residential and corporate installations. It’s features include support for cutting-edge HDMI 2.1 resolutions, delivering 8K@30Hz (or 8K@60Hz 4:2:0) and 4K@120Hz (4:4:4) video up to 35m over a single Cat5e/6 cable, or up to 40m over Cat6a/7, ensuring future-proof performance with a 40Gbps data rate and HDCP 2.3 compliance. Installation is simplified through Bi-direction PoC (Power over Cable), requiring only one power adapter for the entire link, while integrated RS232 and Bi-direction IR Pass-through provide comprehensive control. Furthermore, the unit offers professional audio handling with a balanced de-embedded audio output on the Receiver (RX) for connecting to dedicated sound systems.

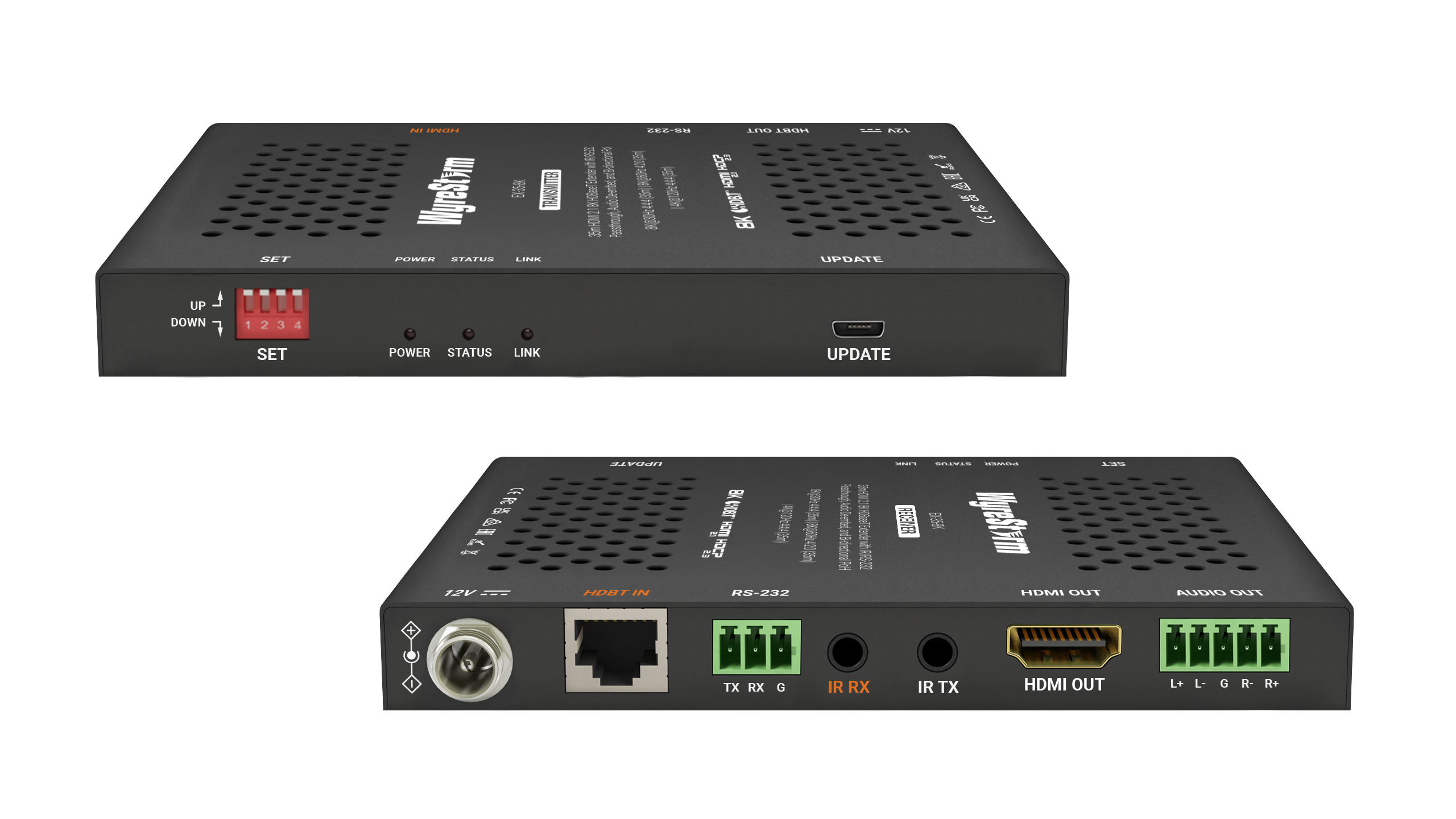

WyreStorm EX-35-8K — 35m HDMI 2.1 8K HDBaseT Extender with IR/RS-232 Passthrough, Audio De-embed, and Bi-directional PoH
The EX-35-8K is a robust solution for extending high-bandwidth video and control signals for residential and corporate installations. It’s features include support for cutting-edge HDMI 2.1 resolutions, delivering 8K@30Hz (or 8K@60Hz 4:2:0) and 4K@120Hz (4:4:4) video up to 35m over a single Cat5e/6 cable, or up to 40m over Cat6a/7, ensuring future-proof performance with a 40Gbps data rate and HDCP
| Marka | WyreStorm |
|---|---|
| Model | EX-35-8K |
| Input/Output Signal Type | HDMI 2.1, HDCP 2.3 |
| Max Input/Output Resolutions | VESA: 5120×2160@60Hz 5120×1440@60Hz 2560×1440@60Hz 2048×1152@60Hz 1920×1200@60hz HDTV: 7680 x 4320p@60Hz 4096 x 2160p@120Hz 3840 x 2160p@120Hz 1920 x 1080p@240Hz 1280x720p@120Hz Note: 7680 x 4320P @48Hz/50Hz/60Hz supports only YCbCr 4:2:0. |
| Maximum Data Rate | HDMI: 40Gbps |
| Audio Formats | HDMI IN/OUT: Supports multichannel audio up to PCM 7.1, including PCM 2.0/5.1/7.1ch, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio and DTS:X AUDIO OUT: PCM 2.0ch |
| Transmission Distance | Cat5e/6 1080P@60Hz: 197ft/60m 4K@60Hz, 8K@60Hz 4:2:0: 115ft/35m Cat6a/7 1080P@60Hz: 230ft/70m 4K@60Hz, 8K@60Hz 4:2:0: 131ft/40m HDMI 4K@30Hz, 1080P@60Hz Input/Output: 33ft/10m 4K@60Hz Input: 33ft/10m 4K@60Hz Output: 16ft/5m 8K@60Hz 4:2:0, 4K@120Hz, 8K@30Hz Input/Output: 10ft/3m |
| Power Supply | DC 12V 2A |
| Power Consumption | 11.4W (Pair, via PoC) |
