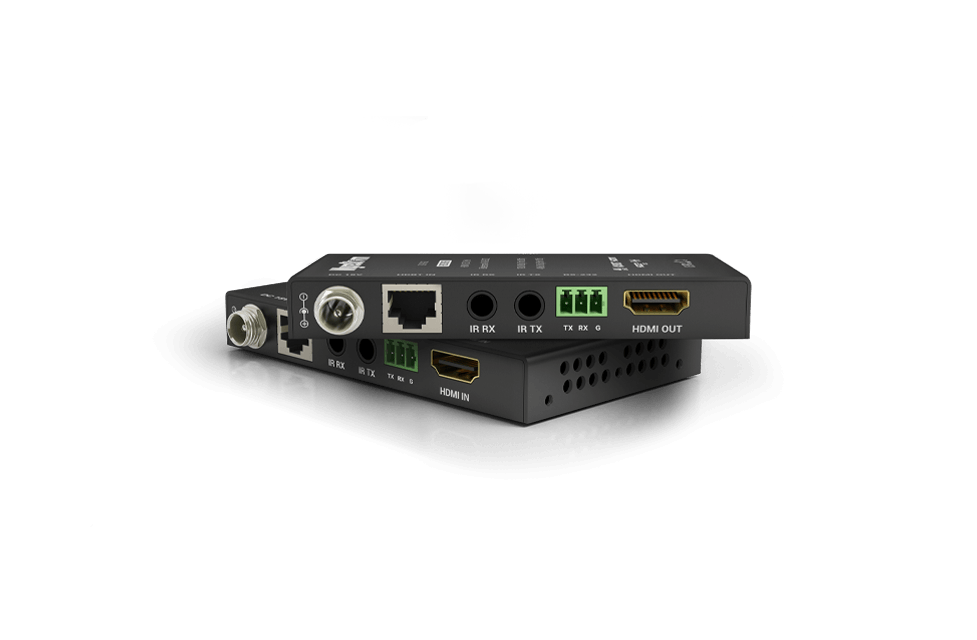

WyreStorm EX-70-G2 4K HDBaseT Extender Set with HDCP 2.2 & 2-way PoH
Extend 4K UHD and 1080p HDMI signals up to 35m/115ft (4K) and 70m/230ft (1080p) with the WyreStorm EX-70-G2 HDMI/HDBaseT extender set, featuring bi-directional IR, RS-232, CEC pass-through, and flexible PoH power options for pro AV installations.
| Marka | WyreStorm |
|---|---|
| Model | EX-70-G2 |

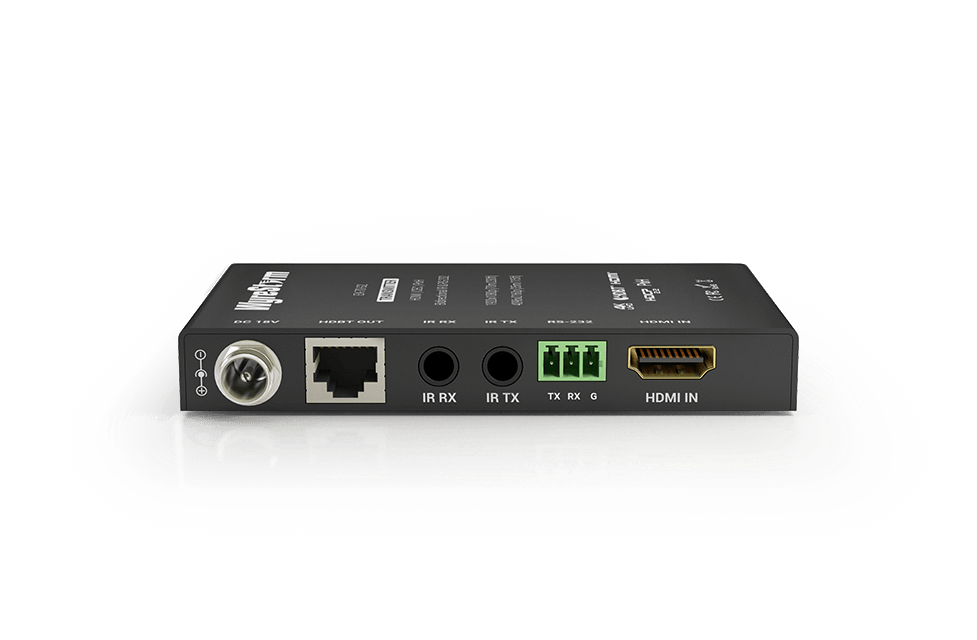

| Inputs | TRANSMITTER 1x HDMI 19-pin type A RECEIVER 1x HDBaseT 8-pin RJ-45 Female |

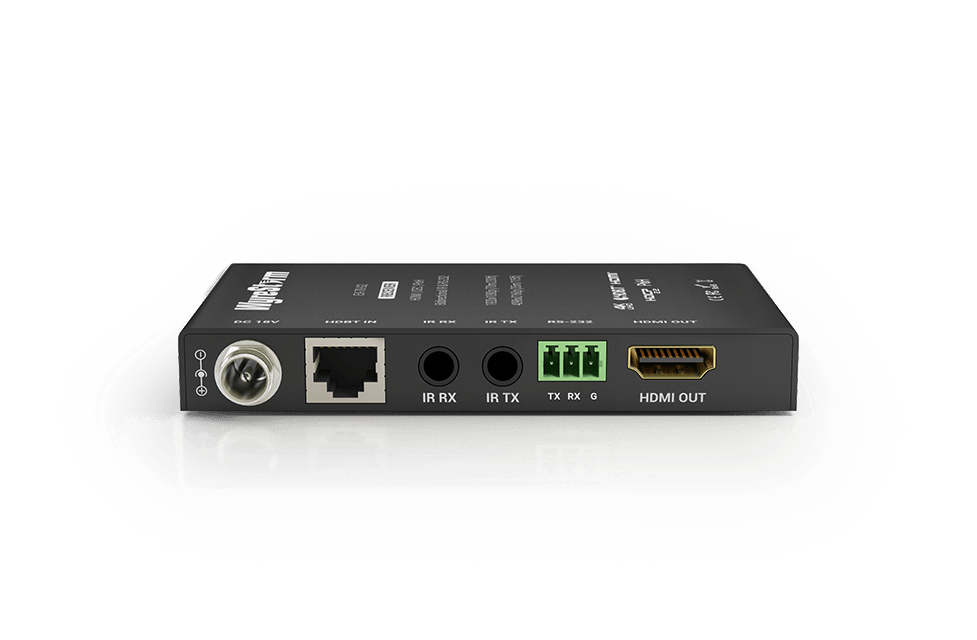

| Outputs | TRANSMITTER 1x HDBaseT 8-pin RJ-45 Female RECEIVER 1x HDMI 19-pin type A |
| Output Video Encoding | HDBaseT Class B |
| Encoding Data Rate | 9.2Gbps |
| End to End Latency | 10μs (microseconds) |
| Audio Formats | 2ch PCM, Multi Channel up to Dolby Atmos® and DTS-X™ |
| Video Resolutions (max) | 1920x1080p @60Hz 16bit 3840x2160p @30Hz 8bit 4:4:4 3840x2160p @60Hz 8bit 4:2:0 4096x2160p @60Hz 8bit 4:2:0 5120×1440 @30Hz 5120×1440 @60Hz 4:2:0 |
| Supported Standards | DCI, RGB |
| Maximum Pixel Clock | HDMI: 300MHz, HDBaseT: 297MHz |
| HDMI | HDMI, HDCP (v1 chassis 1.4, v2 chassis 2.2), EDID Pass-through, CEC Pass-through DVI/D supported with adapter (not included) |
| HDBaseT | HDMI, HDCP (v1 chassis 1.4, v2 chassis 2.2), EDID Pass-through, 2-way PoH, Bidirectional IR |
| IR | 1x IR TX: 3.5mm (1/8in) TS Mono 1x IR RX: 3.5mm (1/8in) TRS Stereo |
| RS-232 | 1x RS-232: 3-pin Phoenix (v2 chassis only) |
| Power Supply | 18V DC 1A |
| PoH | IEEE 802.3af 15.4W Max, 2-way |
| Max Power Consumption | Transmitter: 7W, Receiver: 17W |
