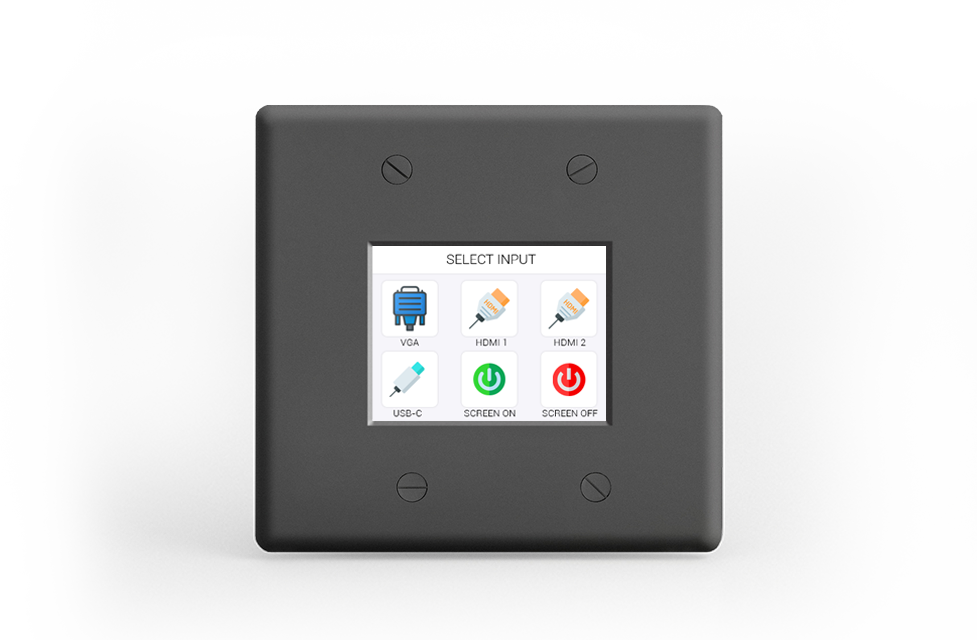

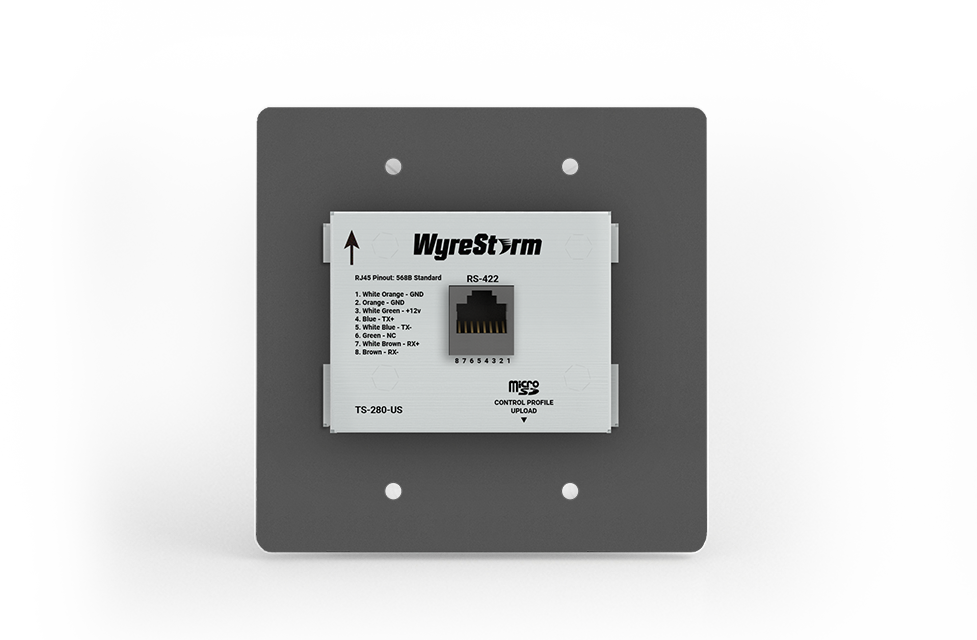

Introducing the TS-280 to the WyreStorm range. The 2.8″ colour touchscreen can control select products within the WyreStorm presentation switcher range. With ease of use in mind the TS-280 is as easy to use as it is to set up, with pre-configured UI’s ready to upload in just seconads via the MicroSD card slot on the rear. The UIs are simple to use with large buttons clearly labeled for each major function and navigation controls (where applicable) to move between pages. Using a standard RJ45 connection on the rear and RS-422 communication, the TS-280 also comes with an in-line RS-422 to RS-232 converter which doubles as a power-injector if used with a product that doesn’t feed the 12v power.
Control System
WyreStorm TS-280-US — 2.8″ Serial Control Color Touchscreen
Introducing the TS-280 to the WyreStorm range. The 2.8″ colour touchscreen can control select products within the WyreStorm presentation switcher range. With ease of use in mind the TS-280 is as easy to use as it is to set up, with pre-configured UI’s ready to upload in just seconads via the MicroSD card slot on the rear. The UIs are simple to use with large buttons clearly labeled for each major
| Marka | WyreStorm |
|---|---|
| Model | TS-280-US |
| Switcher Control | 1x RS-422: 8-pin RJ-45 Female 1x RS-232: 4-pin Phoenix |
| Max Communication Distance | 100m/328ft Interface to Touchscreen 15.24m/50ft Switcher to Interface |
| Power Supply | 12VDC from Touchscreen Interface Module 12VDC from switcher or seperate PSU (not included) |
| Max Power Consumption | 0.84W 0.36W |
| Operating Temperature | 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing |
| Storage Temperature | -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing |
| Maximum BTU | Transmitter: 24 BTU/hr, Receiver: 58 BTU/hr |
| Rack Units | Wall Box | 2 Gang <1U |
| Height | 114mm/4.49in 25mm/0.99in |
| Width | 117mm/4.61in 80.2mm/3.16in |
| Depth | 32.1mm/1.27in 50mm/1.97in |
| Weight | 0.30kg/0.66lbs 0.14kg/0.31lbs |
| Safety and Emission | CE, FCC, RoHS |
