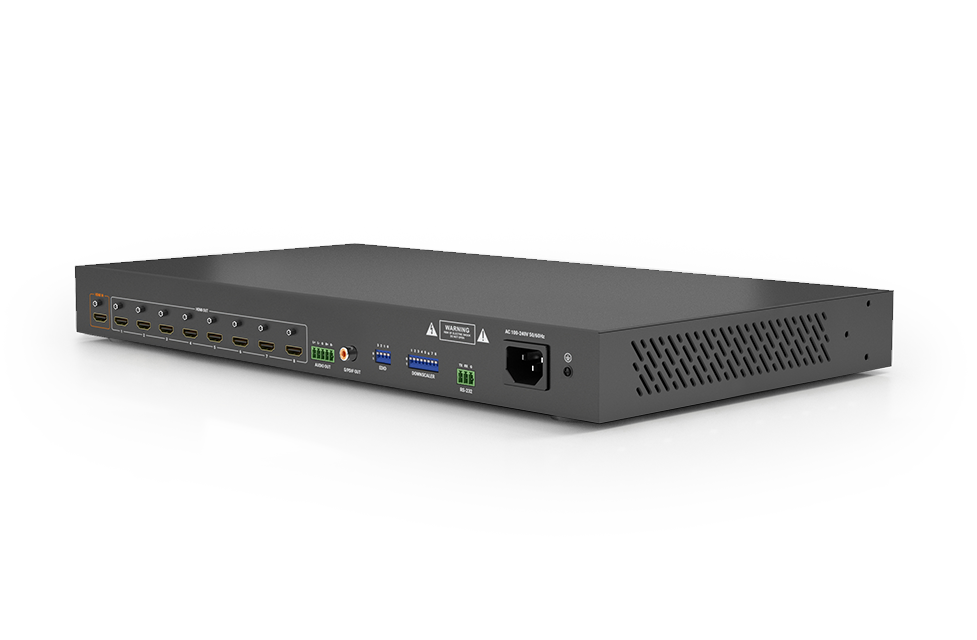

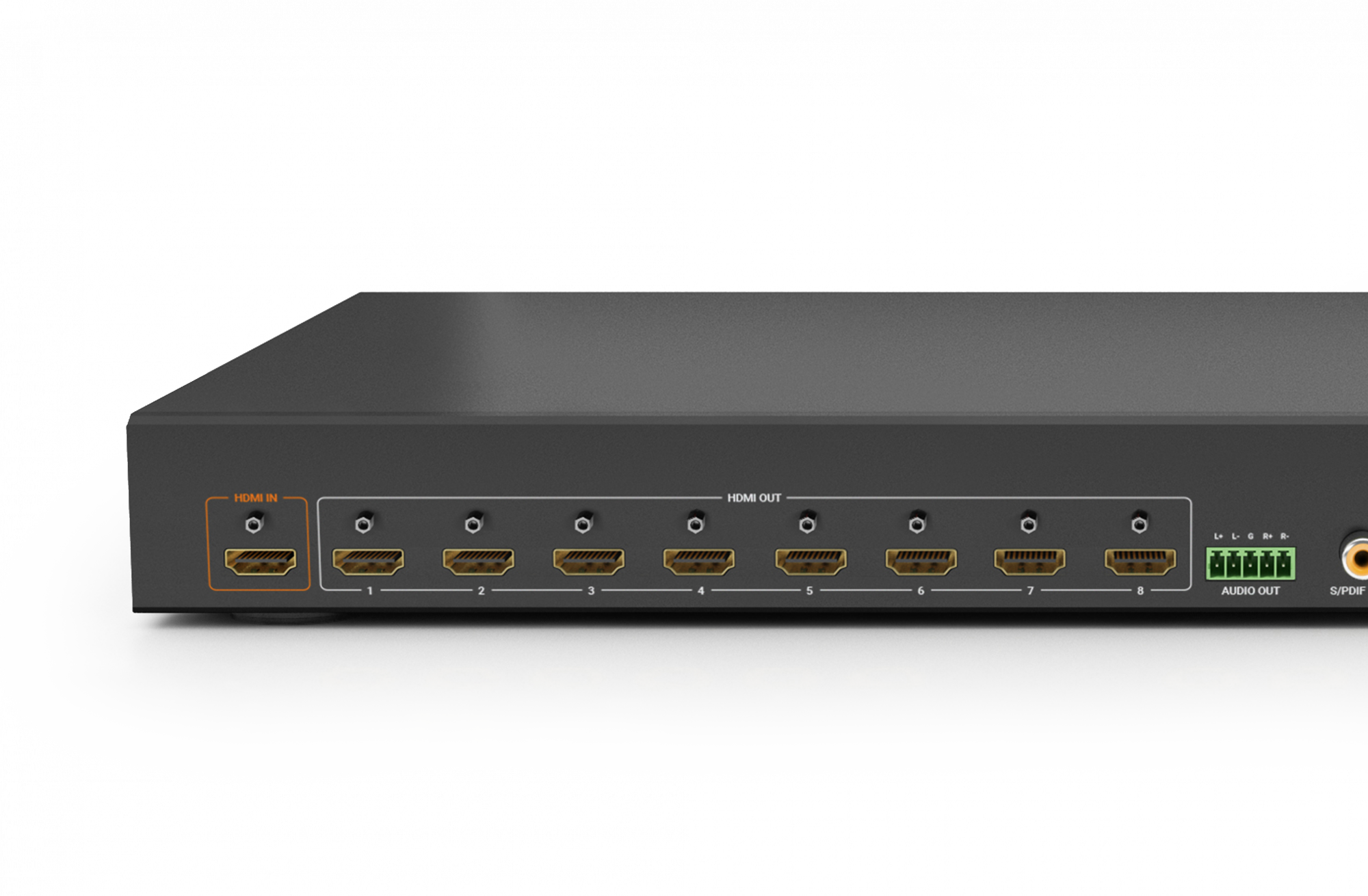

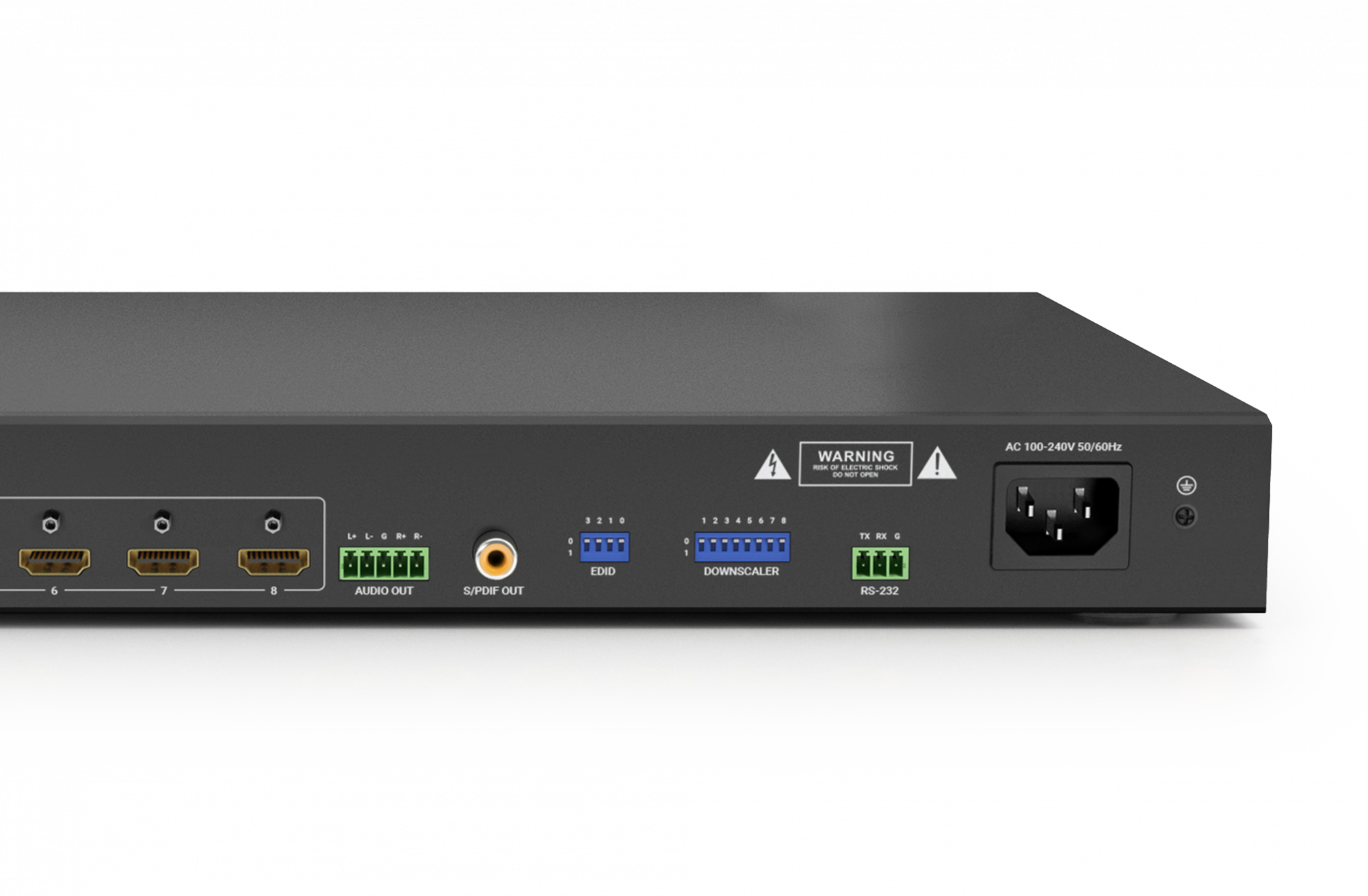

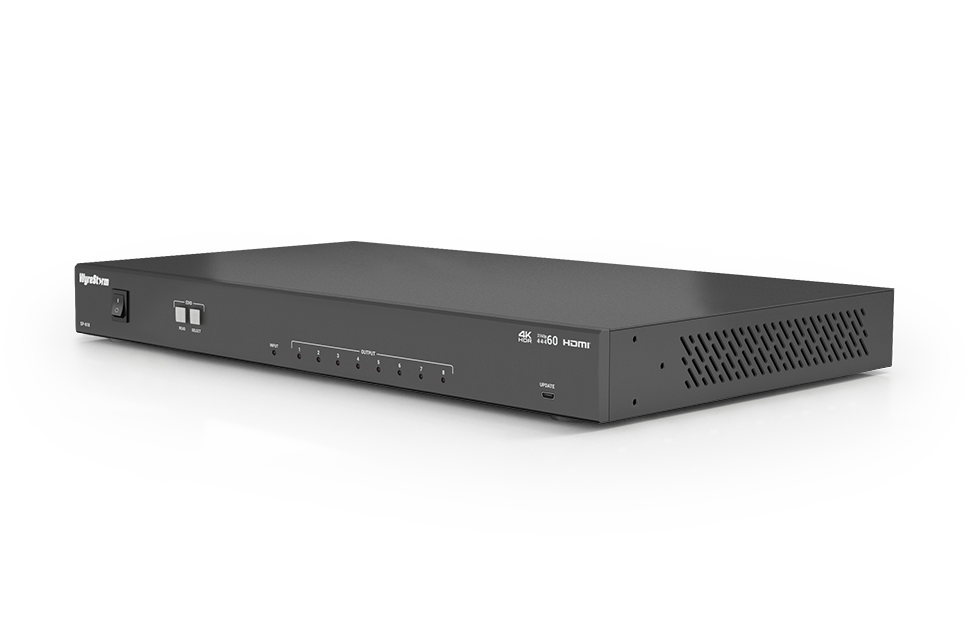

WyreStorm SP-618 — 4K60 1:8 Scaling HDMI Splitter
WyreStorm SP-618 — 4K60 1:8 Scaling HDMI Splitter - Görsel 2
WyreStorm SP-618 — 4K60 1:8 Scaling HDMI Splitter - Görsel 3
WyreStorm SP-618 — 4K60 1:8 Scaling HDMI Splitter - Görsel 4

WyreStorm SP-618 — 4K60 1:8 Scaling HDMI Splitter

Teklif Al

DISCONTINUED The SP-618 is a simple yet powerful HDMI splitter that can be used in many applications from digital signage to retail or hospitality. Each HDMI output of the SP-618 features a 4K to 1080p down scaler, allowing for mixed resolution displays to be used simultaneously without suffering from compatibility limitations. A balanced analog and digital S/PDIF audio de-embed allows easy connec

Stok kodu: SP-618 Kategoriler:

DISCONTINUED The SP-618 is a simple yet powerful HDMI splitter that can be used in many applications from digital signage to retail or hospitality. Each HDMI output of the SP-618 features a 4K to 1080p down scaler, allowing for mixed resolution displays to be used simultaneously without suffering from compatibility limitations. A balanced analog and digital S/PDIF audio de-embed allows easy connection for external amplifiers or DSPs. With a 1U chassis, the SP-618 can be easily fitted in standard 19″ equipment racks for a tidy installation.

Marka

WyreStorm
Model

SP-618
Inputs

1x HDMI In: 19-pin type A
Outputs

8x HDMI Out: 19-pin type A
Encoding Data Rate

Uncompressed 18Gbps
End to End Latency

None
Audio Formats

2ch PCM, Multichannel: LPCM and up to DTS-X and Dolby
Video Resolutions (Max)

Video Resolutions 1920x1080p @60Hz 14bit 3840x2160p @60Hz 10bit 4:2:2 HDR10/10+ 3840x2160p @60Hz 12bit 4:2:0 Dolby Vision 3840x2160p @50Hz 10bit 4:2:0 HLG 4096x2160p @60Hz 8bit 4:4:4 HDMI 7m/23ft 5m/16ft 5m/16ft 5m/16ft 5m/16ft
Supported Standards

DCI, RGB, HDR10, HDR10+, Dolby Vision, HLG, BT.2020
Maximum Pixel Clock

600MHz
HDMI

HDCP 2.2, EDID, CEC, DVI/D supported with adapter (not included)
RS-232

1x 4-pin Phoenix (Control)
Power Supply

100~240V AC 5060Hz
Max Power Consumption

18W
Operating Temperature

32°F ~ 113°F (0°C ~ 45°C) 10% ~ 90%, non-condensing
Storage Temperature

-4°F to ~ 158°F (-20°C ~ +70°C) 10% ~ 90%, non-condensing
Maximum BTU

25 BTU/hr
Rack Units | Wall Box

1U
Height With | Without Feet

44.4mm/1.7in
Width With | Without Brackets

438mm/17.25in
