The NHD-400-E-TX encoder offers stunning 4K HDR video, multichannel audio support and 4K/2K scaling to seamlessly handle mixed resolution HDMI sources for matrix and video wall functionality. The reduced cost Type E version removes some control ports but retains the 400 Series core features. Featuring incredible low latency the 400 Series is the ideal AV over IP solution for systems where high quality and low delay are key requirements, making it perfect for demanding commercial applications. The NHD-400-E-TX JPEG 2000 encoder is intended for use with any 400 Series JPEG 2000 decoder (sold seperately) to provide a complete end-to-end video distribution system. When used in conjunction with the NHD-CTL-PRO v2 system controller complete control integration is quick and simple.

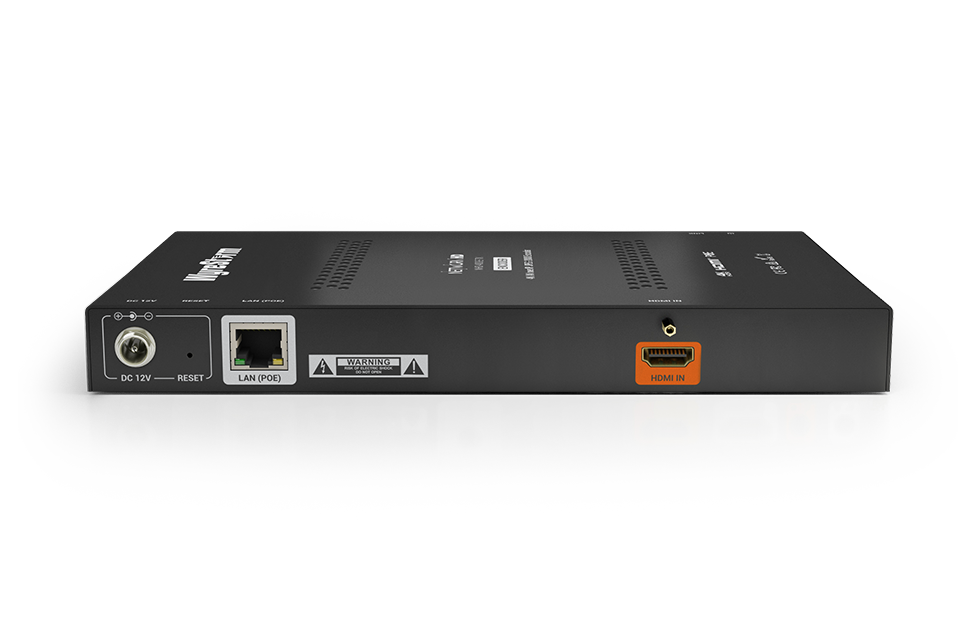

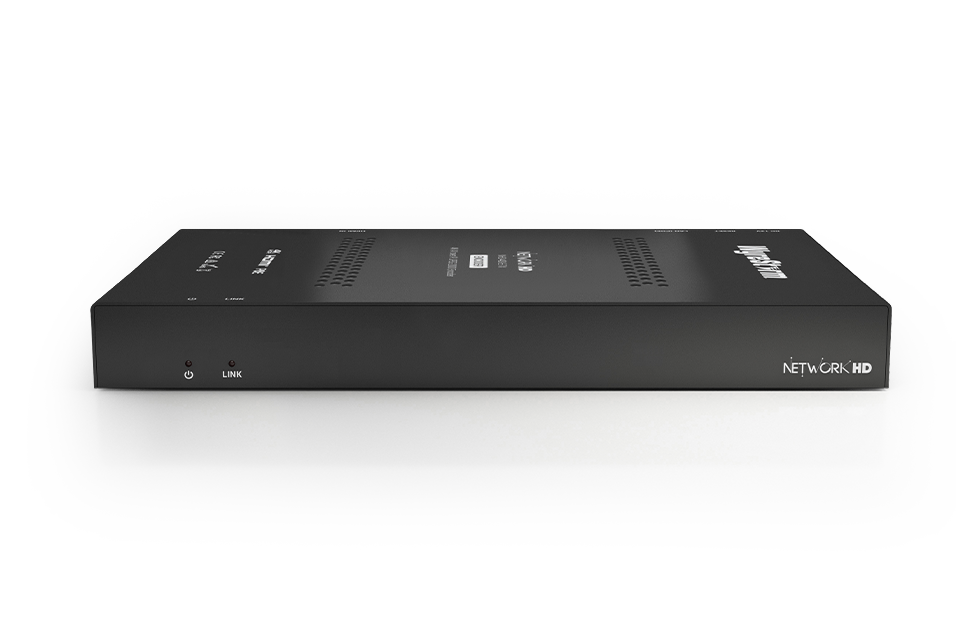

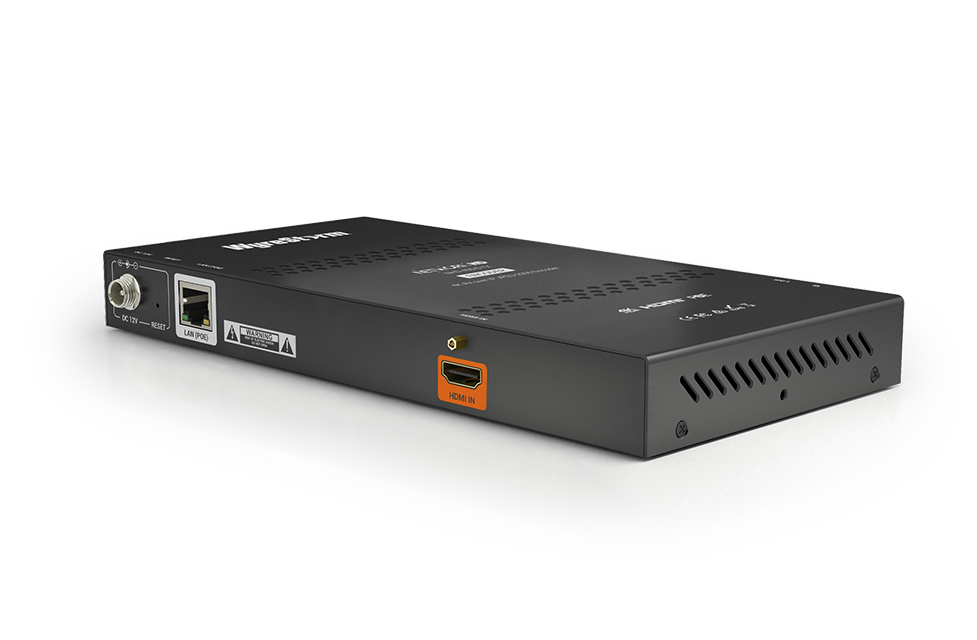

WyreStorm NHD-400-E-TX — NetworkHD 400 Series 4K AV over IP JPEG 2000 Encoder
The NHD-400-E-TX encoder offers stunning 4K HDR video, multichannel audio support and 4K/2K scaling to seamlessly handle mixed resolution HDMI sources for matrix and video wall functionality. The reduced cost Type E version removes some control ports but retains the 400 Series core features. Featuring incredible low latency the 400 Series is the ideal AV over IP solution for systems where high qua
| Marka | WyreStorm |
|---|---|
| Model | NHD-400-E-TX |
| Inputs | 1x 19-pin HDMI Type A |
| Outputs | 1x 8-pin RJ-45 |
| Audio Formats | 2ch LPCM, Multichannel: LPCM and Up to DTS-X and Dolby Atmos |
| Output Video Encoding | JPEG 2000 |
| Encoding Data Rate | Max: 850Mbps |
| End to End Latency (Max) | 1 video frame latency (pass-through mode) 16ms @60fps 2 video frames latency (scaler/VW mode) 33ms @60fps |
| Video Resolutions (Max) | 3840x2160p @60Hz 8bit 4:2:0 |
| Supported Standards | HDR10, HLG, BT.2020 |
| Maximum Pixel Clock | 300MHz |
| HDMI | HDCP 2.2, CEC |
| Ethernet | 1x LAN (PoE): 8-pin RJ-45 ANSI/TIA-568 8P8C, 1000Base-T, PoE PD (IEEE 802.3af) |
| RS-232 | 1x RS-232: 4-pin Phoenix, 2 Way (RX only), Routed, API Programmable |
| Power Supply | 12V DC 1A |
| PoE | IEEE 802.3af (15.4W at PSE) |
| Max Power Consumption | 8W (with PSU) |
