WyreStorm brings stunning 4K HDR video, video resolution scaling, multi-channel audio and audio matrixing to IP with the NetworkHD 400 Series’ NHD-400-E-RX AVoIP decoder. The reduced cost Type E version removes some control ports but retains the 400 Series core features. Used in conjunction with any 400 Series encoder, the NHD-400-E-RX seamlessly handles mixed resolution sources, content and display devices for matrix and video wall functionality up to 16×16 with image rotation and bezel compensation. Featuring incredibly low latency, the 400 Series is the ideal AV over IP solution for systems where high quality and low latency are key requirements, making it perfect for both residential and commercial applications.
Discontinued Products, NetworkHD AV over IP

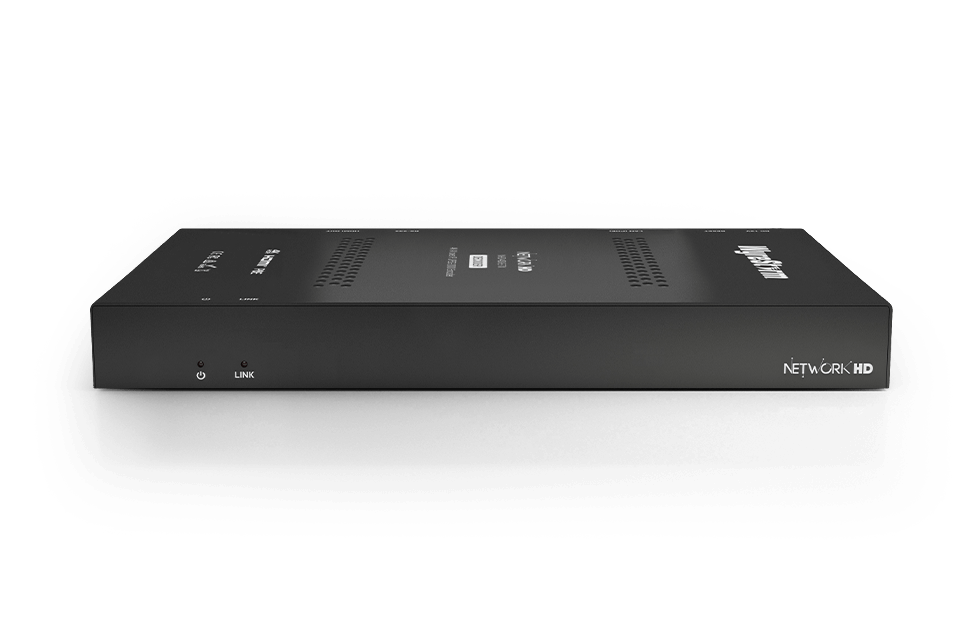

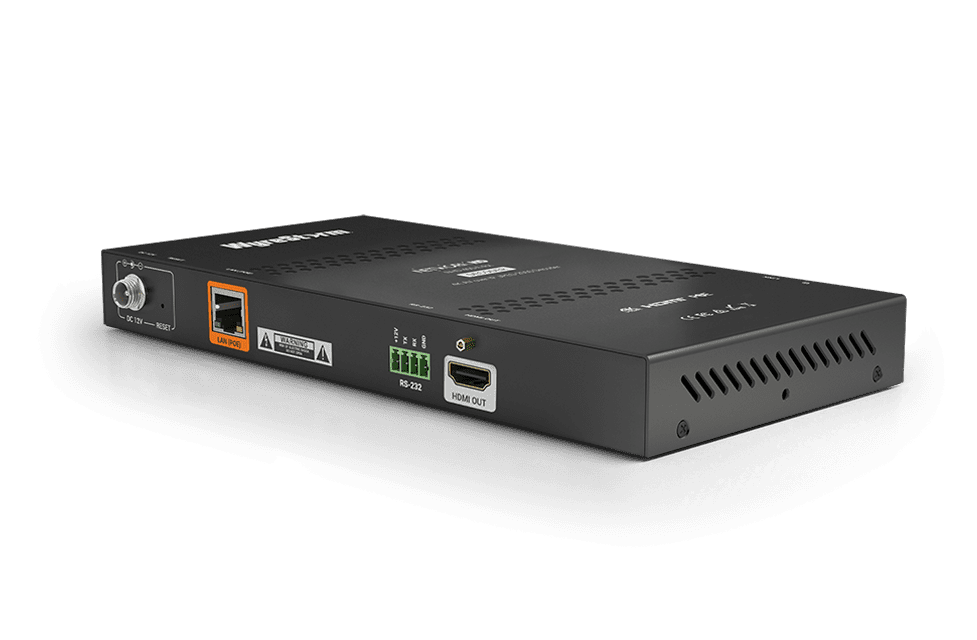

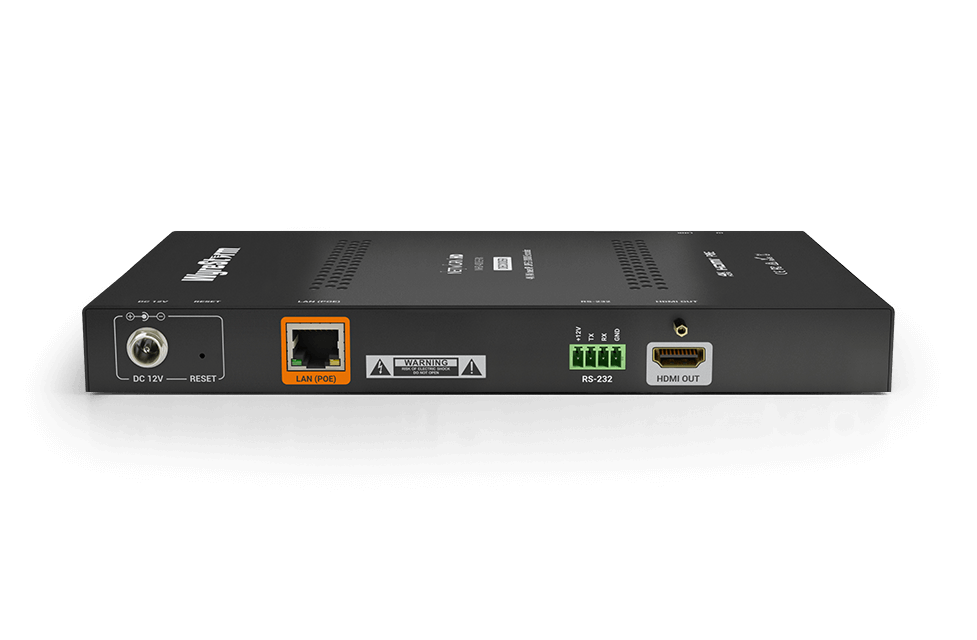

WyreStorm NHD-400-E-RX — NetworkHD 400 Series 4K AV over IP JPEG 2000 Decoder
WyreStorm brings stunning 4K HDR video, video resolution scaling, multi-channel audio and audio matrixing to IP with the NetworkHD 400 Series’ NHD-400-E-RX AVoIP decoder. The reduced cost Type E version removes some control ports but retains the 400 Series core features. Used in conjunction with any 400 Series encoder, the NHD-400-E-RX seamlessly handles mixed resolution sources, content and displ
| Marka | WyreStorm |
|---|---|
| Model | NHD-400-E-RX |
| Inputs | 1x 8-pin RJ-45 |
| Outputs | 1x HDMI Out 19-pin type A |
| Audio Formats | 2ch LPCM, Multichannel: LPCM and Up to DTS-X and Dolby Atmos |
| Output Video Encoding | JPEG 2000 |
| Encoding Data Rate | Max: 850Mbps |
| End to End Latency (Max) | 1 video frame latency (pass-through mode) 16ms @60fps 2 video frames latency (scaler/VW mode) 33ms @60fps |
| Video Resolutions (Max) | 3840x2160p @60Hz 8bit 4:2:0 |
| Supported Standards | HDR10, HLG, BT.2020 |
| Maximum Pixel Clock | 300MHz |
| HDMI | HDCP 2.2, CEC |
| Ethernet | 1x LAN (PoE): 8-pin RJ-45 ANSI/TIA-568 8P8C, 1000Base-T, PoE PD (IEEE 802.3af) |
| RS-232 | 1x RS-232: 4-pin Phoenix, 2 Way (RX only), Routed, API Programmable |
| Power Supply | 12V DC 1A |
| PoE | IEEE 802.3af (15.4W at PSE) |
| Max Power Consumption | 8W (with PSU) |
