The NHD-300-TX is a powerful A/V encoder that allows streaming of 1080p HDMI content over a network in a myriad of ways. By supporting standard protocols such as RTSP, RTMP, Unicast and Multicast, transmissions can be decoded by a broad range of 3rd-party hardware and software solutions. Easily live stream events to popular platforms such as YouTube, Facebook, Wowza, OBS through native options in the powerful Web UI. The NHD-300-TX is great for Schools and Universities to broadcast lessons to students, Churches for sharing services and any application where sharing content over a network is required.

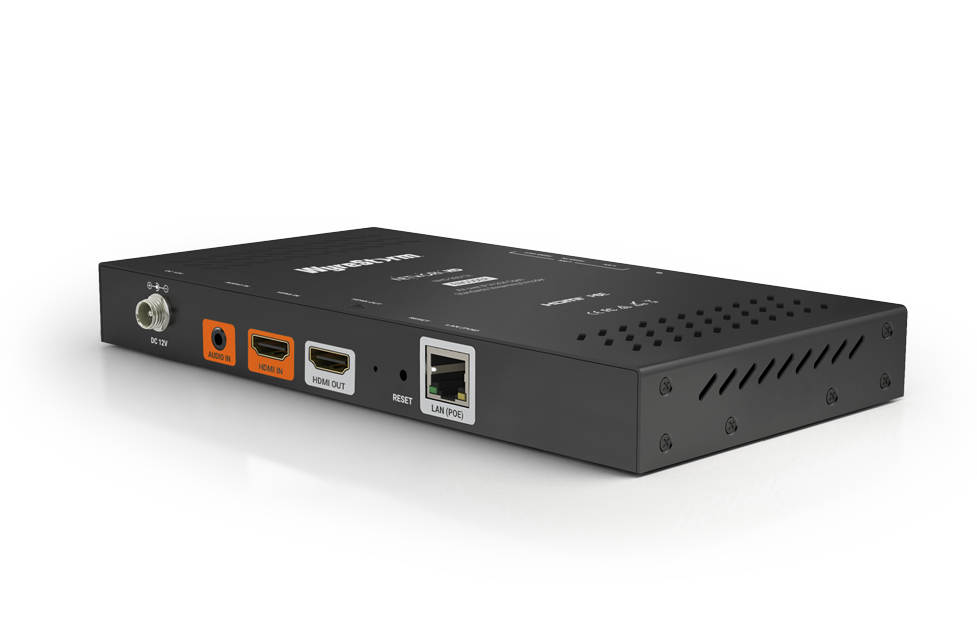

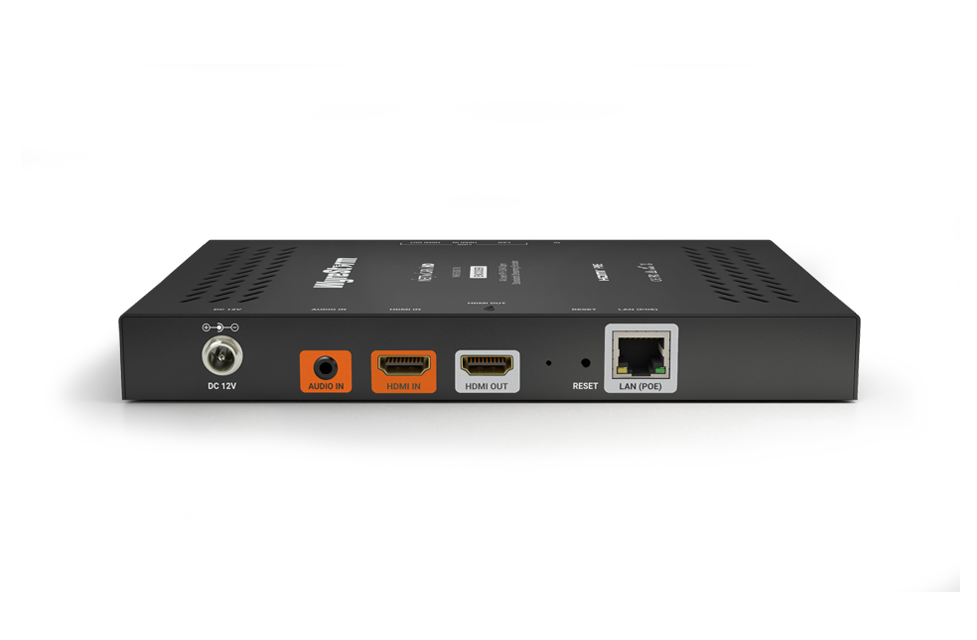

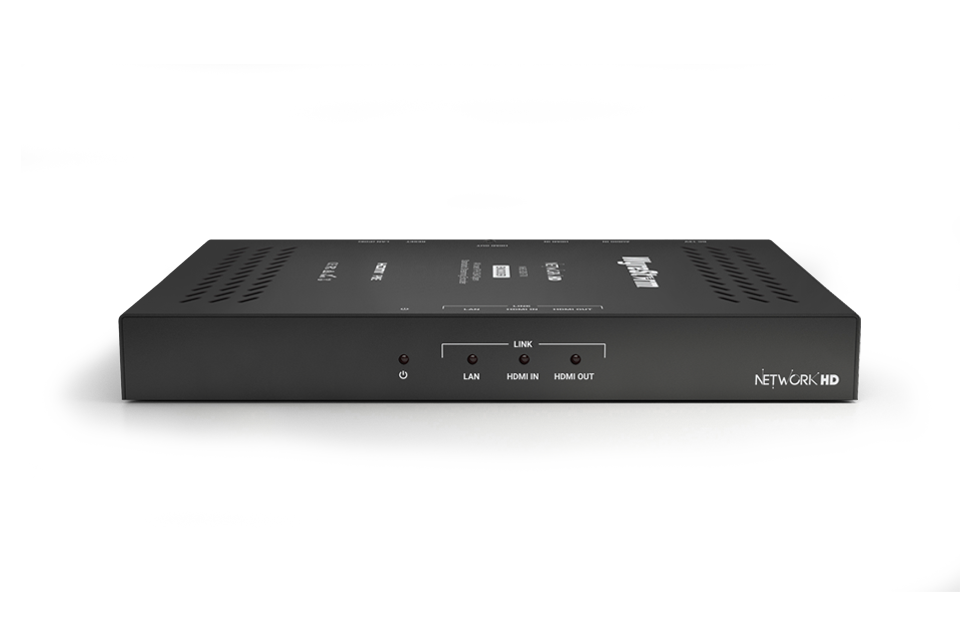

WyreStorm NHD-300-TX — NetworkHD 300 Series 1080p AV over IP H.264 Open Standards Encoder
The NHD-300-TX is a powerful A/V encoder that allows streaming of 1080p HDMI content over a network in a myriad of ways. By supporting standard protocols such as RTSP, RTMP, Unicast and Multicast, transmissions can be decoded by a broad range of 3rd-party hardware and software solutions. Easily live stream events to popular platforms such as YouTube, Facebook, Wowza, OBS through native options in
| Marka | WyreStorm |
|---|---|
| Model | NHD-300-TX |
| Inputs | 1x HDMI In 19-pin HDMI type A 1x Audio In: 3.5mm (1/8in) TRS Stereo |
| Outputs | 1x LAN (PoE) 8-pin RJ-45 female, 1000Base-T 1x HDMI 19-pin HDMI Type A (Loop Out) |
| Encoding Data Rate | Max: 12Mb/s (Configurable) |
| Audio Formats | 2ch LPCM @ 32KHz, 44.1KHz, 48KHz |
| Video Encoding | H.264 |
| Video Resolutions (Max) | HDMI: 1920x1080p @60Hz 8bit (15m/50ft) Using Cat6/6a/7: 1920x1080p @60Hz 8bit (100m/328ft Point to Point) |
| Output Audio Encoding | AAC, MP3 @ 320Kb/s (Max) |
| End to End Latency (Max) | 80ms (TCP/UDP), 1500ms (HTTP) |
| Maximum Pixel Clock | 150 MHz |
| HDMI | HDMI 1.4, HDCP Encryption Not Supported |
| Ethernet | 1x LAN: 8-pin RJ-45 ANSI/TIA-568 8P8C, 1000Base-T, PoE |
| Protocols | HTTP, RTSP, RTMP, UDP, Multicast, Unicast, DHCP |
| Power Supply | 12V DC 2A |
| PoE | IEEE 802.3af, 15.4W at PSE |
| Max Power Consumption | 3.6W (with PSU) |
