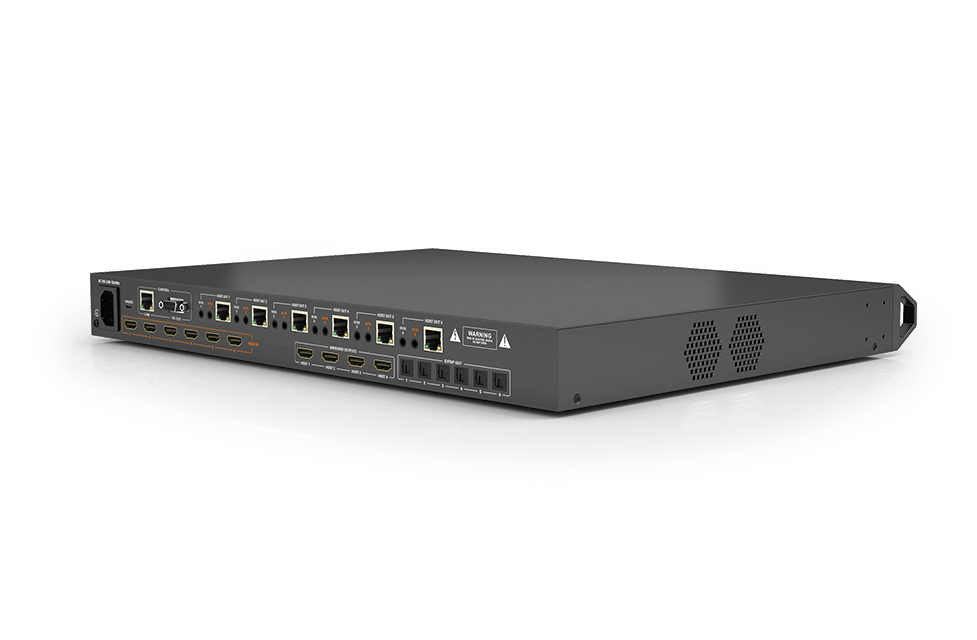

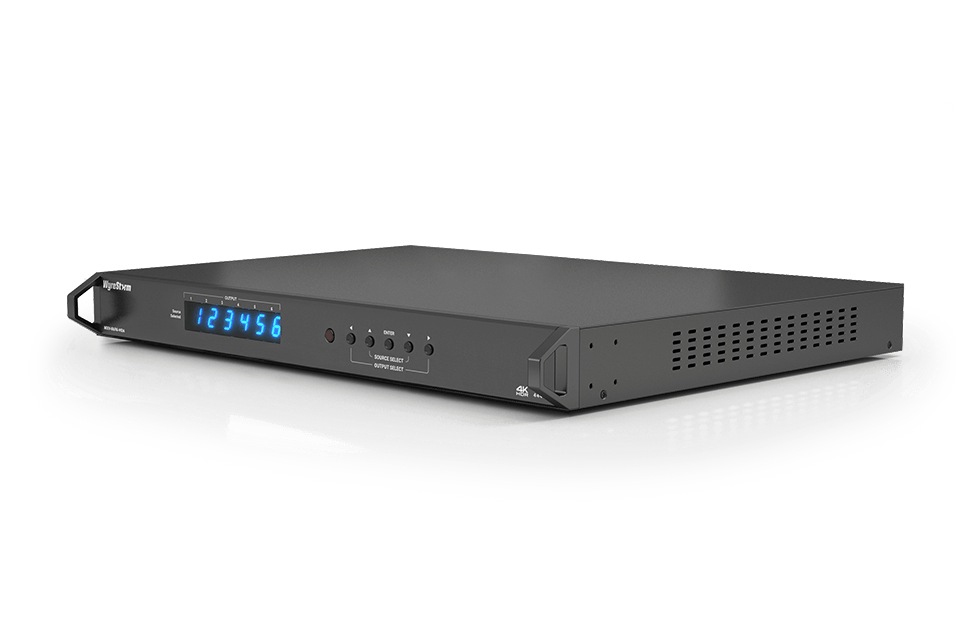

WyreStorm MXV-0606-H2A v2 — 4K HDR 4:4:4 60Hz HDBaseT 6×6 Matrix Switch with 6x Toslink Zone Audio De-Embed and 4 Mirrored HDMI Outputs (4K: 35m/115ft, 1080p: 70m/230ft)

Teklif Al

DISCONTINUED Offering transmission of 18Gbps HDMI content up to 35m/115ft by pairing HDBaseT with WyreStorm’s powerful lossless compression algorithm, the MXV-0606-H2A brings the familiar power of the WyreStorm H2-series to a compact 1U chassis. Unlike competing compression methods such as CSC, which permanently remove color data, WyreStorm’s VLC uses lossless compression technology to ensure sign

Stok kodu: MXV-0606-H2A v2 Kategoriler: ,

DISCONTINUED Offering transmission of 18Gbps HDMI content up to 35m/115ft by pairing HDBaseT with WyreStorm’s powerful lossless compression algorithm, the MXV-0606-H2A brings the familiar power of the WyreStorm H2-series to a compact 1U chassis. Unlike competing compression methods such as CSC, which permanently remove color data, WyreStorm’s VLC uses lossless compression technology to ensure signal integrity. With 6 HDBaseT zone outputs & 4 mirrored HDMI outputs?Cwhich can be paired with WyreStorm’s hybrid HDMI cables or any extender, and CEC triggering for all 10 connected screens, the MXV 6×6 enhances the offering for the modern home or commercial installation.

Marka

WyreStorm
Model

MXV-0606-H2A v2
Inputs

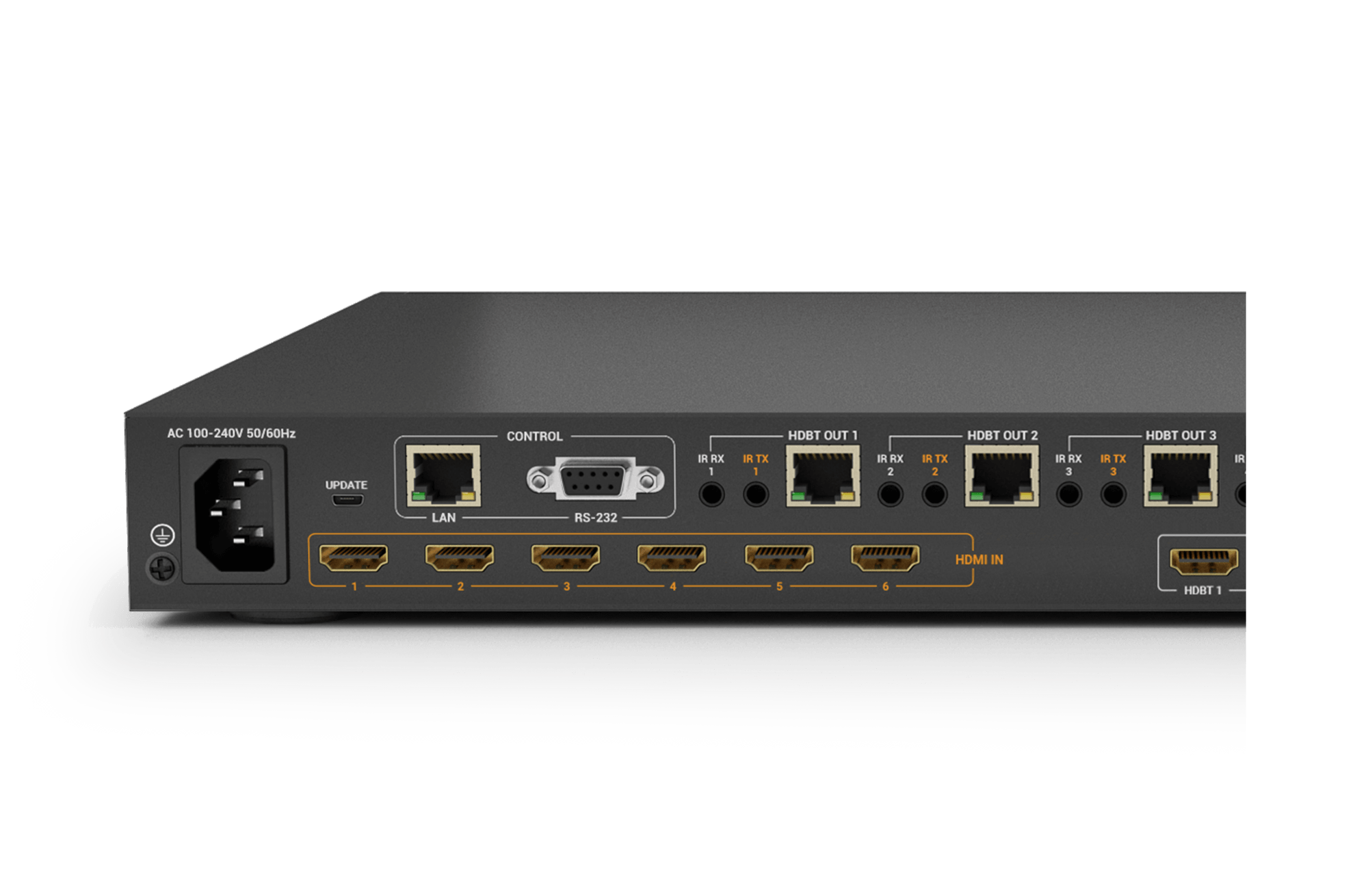

6x HDMI In: 19-pin type A
Outputs

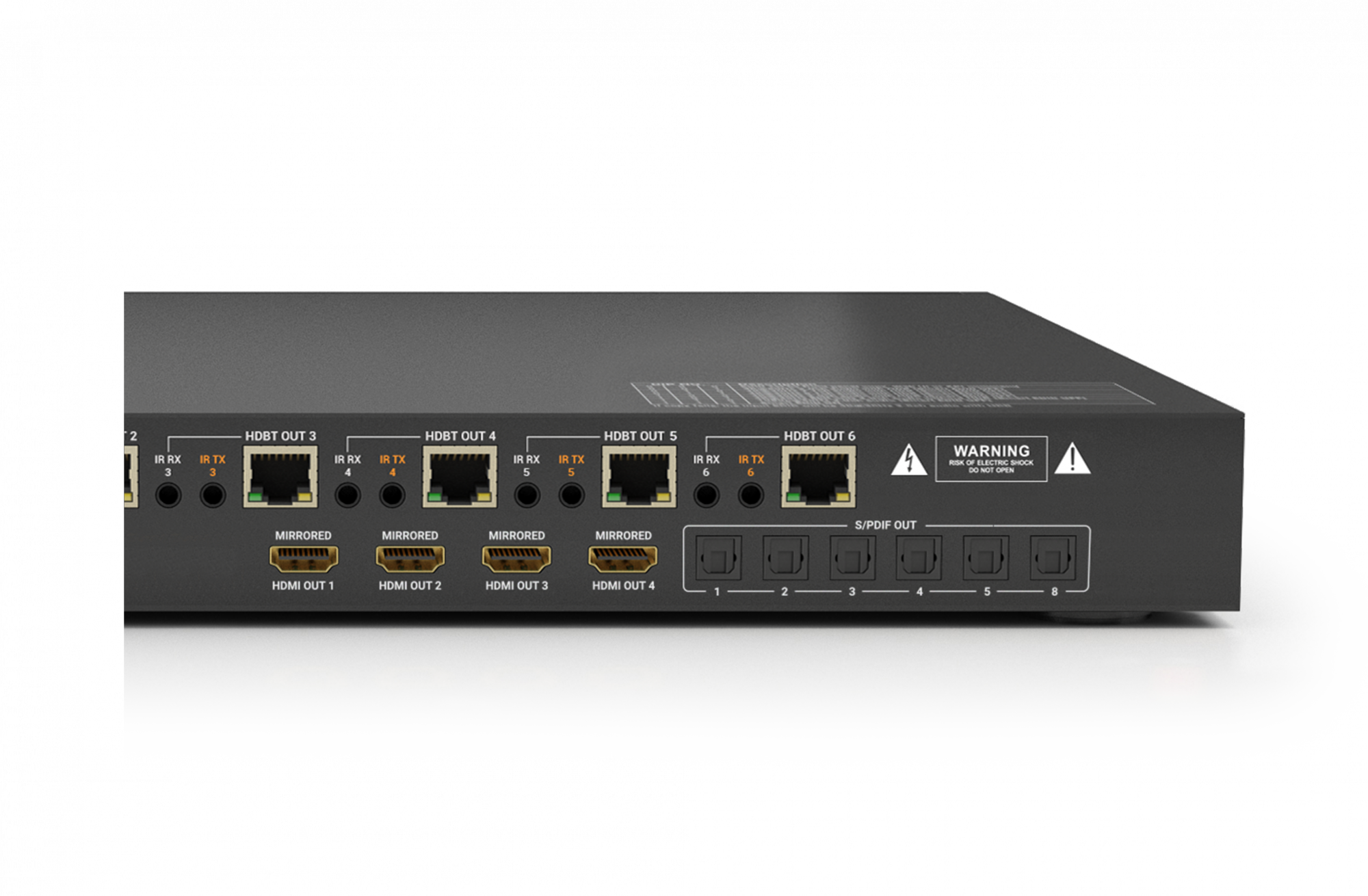

6x HDBT Out: 8-pin RJ-45 Female 6x S/PDIF Out: TOSLINK (Digital Optical) 4x HDMI Out: 19-pin type A
Output Video Encoding

HDBaseT™ Class B
Encoding Data Rate

9.2Gbps
End to End Latency

10μs (micro seconds)
Audio Formats

Analog: 2ch Analog S/PDIF: 2ch LPCM, Dolby Digital/DTS up to 5.1ch HDMI: 2ch LPCM, Multichannel up to Dolby Atmos and DTS-X
Supported Standards

DCI, RGB, HDR, HDR10, Dolby Vision up to 30Hz, HLG, BT.2020, BT.2100
Maximum Pixel Clock

HDMI: 600MHz, HDBaseT: 297MHz
HDMI

HDMI 2.0, HDCP 2.2, EDID, CEC Input supports DVI/D and DisplayPort Dual-Mode (DP++) v1.3 with adapter (not included)
HDBaseT

HDMI 2.0, HDCP 2.2, EDID, 1-way PoH, Bidirectional IR
CEC

CEC power triggering, Requires CEC compatibility, HDMI outputs only
IR

6x IR RX: 3.5mm (1/8in) TRS Stereo, 6x IR TX: 3.5mm (1/8in) TS Mono
RS-232

1x RS-232: 9-pin DB9 Female, Matrix Control, Telnet commands supported
Ethernet

1x LAN: 8-pin RJ-45 Female, Web UI, Matrix Control
Power Supply

100~240V AC 50/60Hz
Max Power Consumption

135W
Operating Temperature

0 ~ +45°C (32 ~ +113 °F), 10% ~ 90%, non-condensing
StorageTemperature

-20 ~ +70°C (-4 ~ +158 °F), 10% ~ 90%, non-condensing
