The EXP-EX-35-G2 has a transmission rate of 18Gbps. This indicates it may be used with ProAV extenders! It also takes up less space and is more cost effective in its smaller form.
Discontinued Products

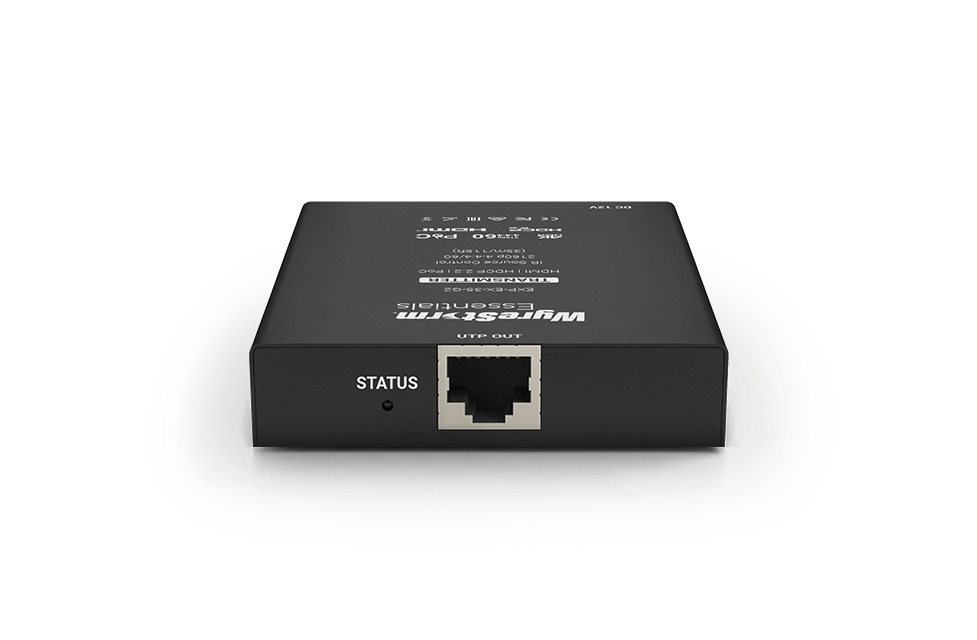

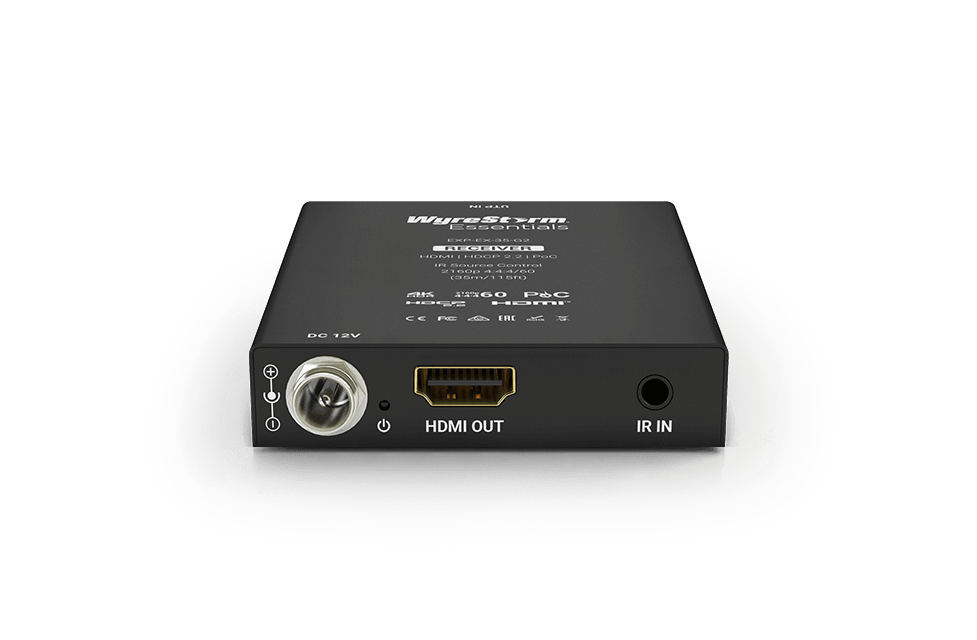

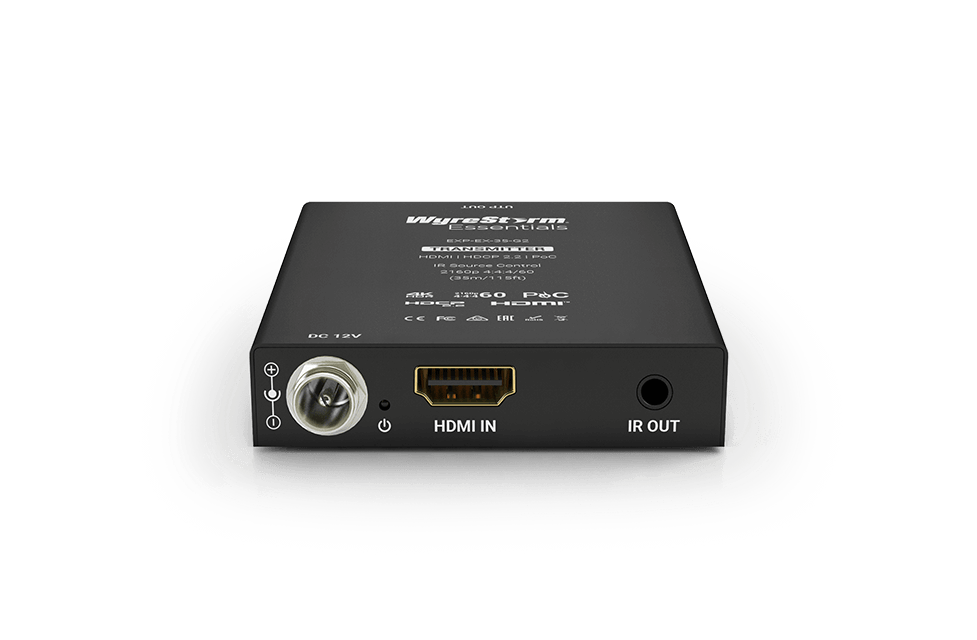

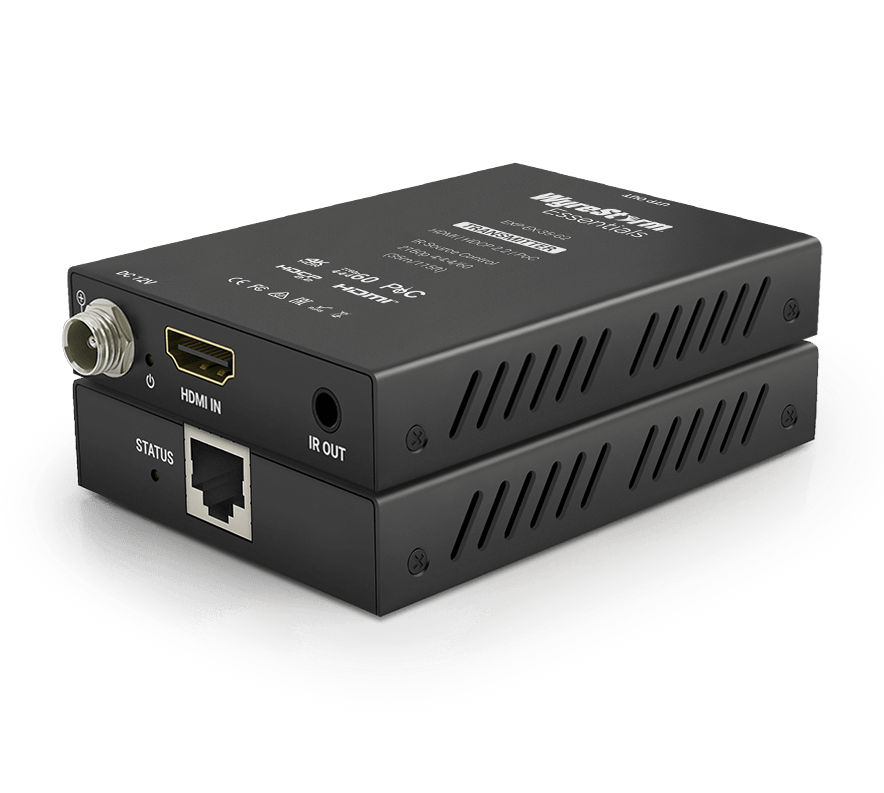

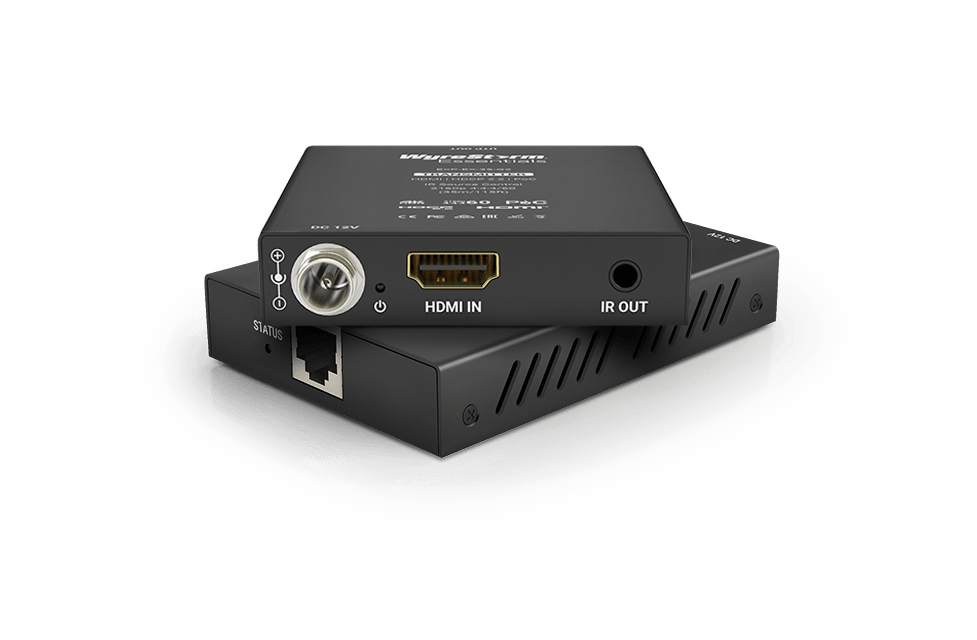

WyreStorm EXP-EX-35-G2 — WyreStorm Essentials? 35m 4K60 UTP Extender| WyreStorm
The EXP-EX-35-G2 has a transmission rate of 18Gbps. This indicates it may be used with ProAV extenders! It also takes up less space and is more cost effective in its smaller form.
| Marka | WyreStorm |
|---|---|
| Model | EXP-EX-35-G2 |
| Inputs | 1x HDMI 19-pin type A 1x UTP In: 8-pin RJ-45 Female |
| Outputs | 1x UTP Out: 8-pin RJ-45 Female 1x HDMI Out: 19-pin type A |
| Output Video Encoding | UTP |
| Encoding Data Rate | 9.2Gbps |
| End to End Latency Formats | 10μs (microseconds) |
| Audio Formats | 2ch PCM, Multichannel up to DTS-X and Dolby Atmos |
| Supported Standards | DCI, RGB, HLG, HDR-10 (Dolby Vision not supported) |
| Maximum Pixel Clock | HDMI: 600MHz, UTP: 297MHz |
| HDMI | HDMI, HDCP 2.2, EDID, DVI/D supported with adapter (not included) |
| UTP | HDMI, HDCP 2.2, EDID, 2-way PoC, IR Source Control |
| IR | 1x IR TX: 3.5mm (1/8in) TS Mono, 1x IR RX: 3.5mm (1/8in) TRS Stereo |
| Power Supply | 12V DC 1A |
| PoC | IEEE 802.3af 48V 15.4W Max, 2-way |
| Max Power Consumption | 6.48W (Pair, PoC) |
| Operating Temperature | 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing |
| Storage Temperature | -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing |
| Maximum BTU | 22.11 BTU/hr |
| Rack Units | Wall Box | <1U |
