The EXP-CON-H2-DD is a great audio tool that everyone should have. It can take Dolby True HD or DTS-HD 7.1 audio signals from an HDMI source and downmix them to RCA stereo analog.
Discontinued Products

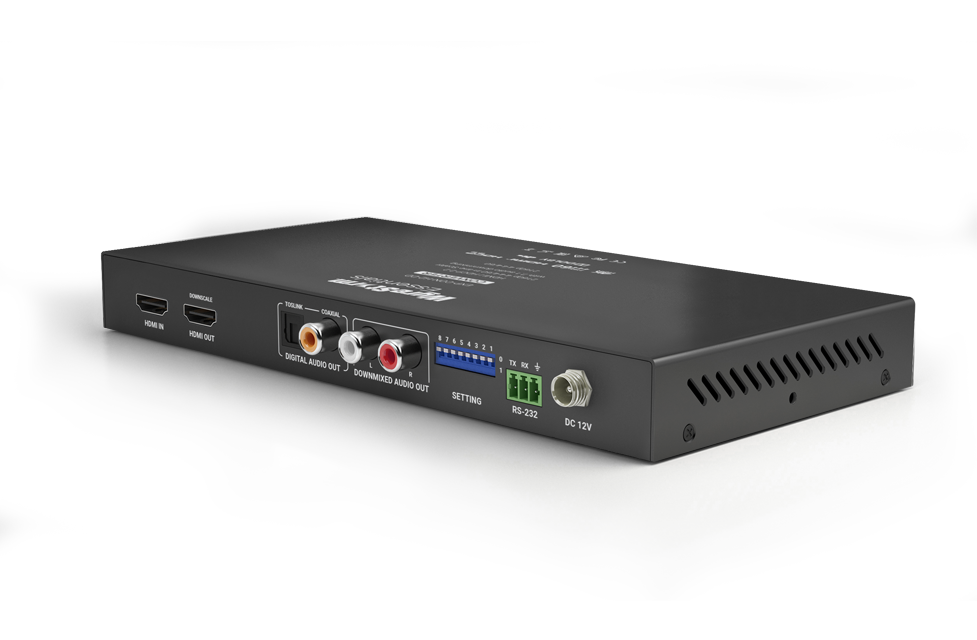

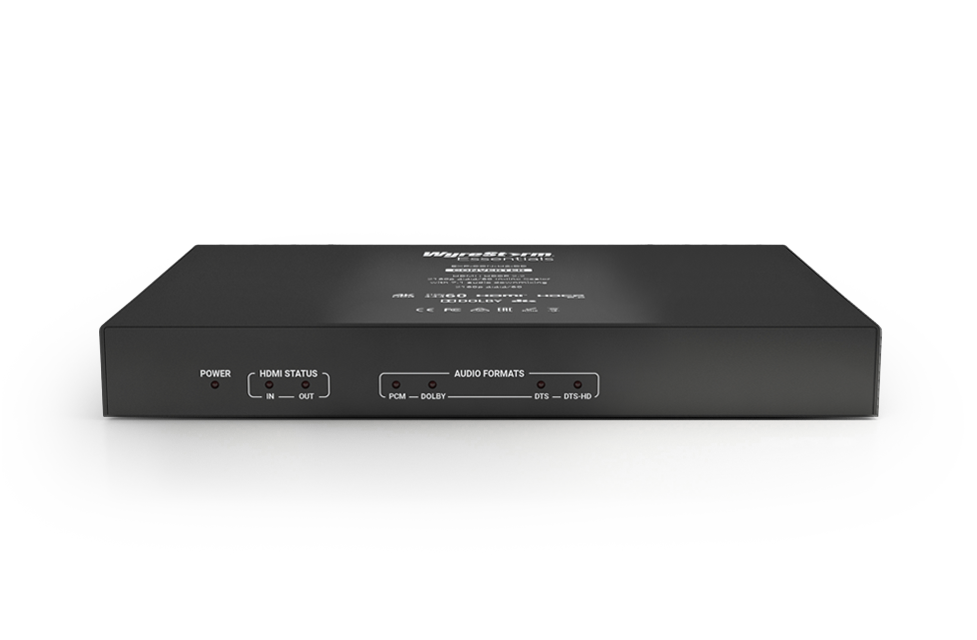

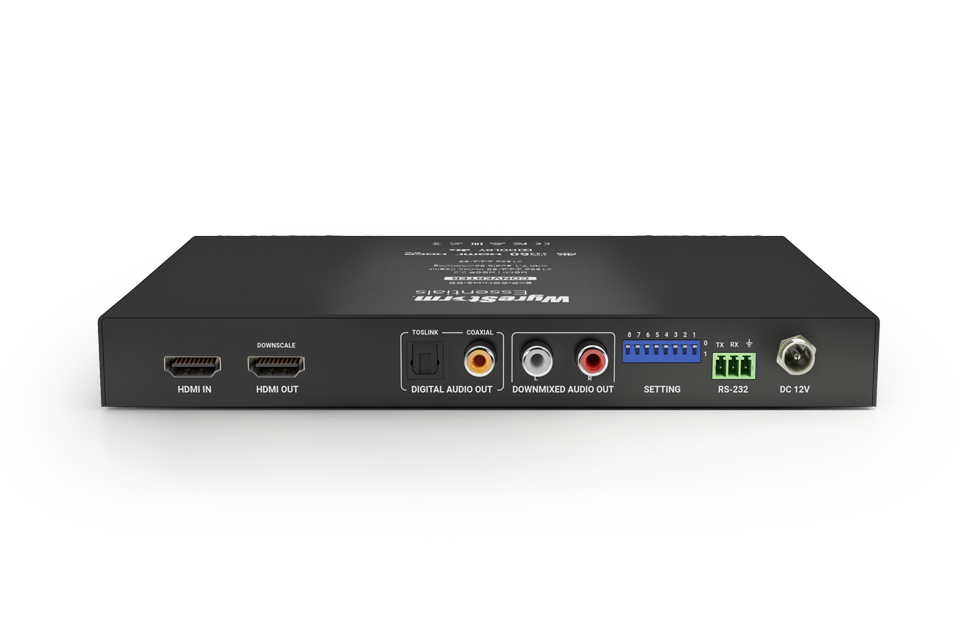

WyreStorm EXP-CON-H2-DD — WyreStorm Essentials? Dolby? & DTS? 7.1 Downmixer| WyreStorm
The EXP-CON-H2-DD is a great audio tool that everyone should have. It can take Dolby True HD or DTS-HD 7.1 audio signals from an HDMI source and downmix them to RCA stereo analog.
| Marka | WyreStorm |
|---|---|
| Model | EXP-CON-H2-DD |
| HDMI | v2.0b TMDS |
| Inputs | 1x HDMI in: 19-pin type A |
| Outputs | 1x HDMI Out: 19-pin type A Scaling Output, 3840x2160p > 1920x1080p only |
| Maximum Transmission Bit Rate | 17.8Gbps |
| Video Resolutions (Max) | Video Resolutions 1920x1080p @60Hz 4096x2160p @60Hz 8bit 4:4:4 3840x2160p @60Hz 10bit 4:2:0 HDR 3840x2160p @60Hz 12bit 4:2:2 HDR HDMI 15m/49ft 3m/10ft 3m/10ft 3m/10ft |
| Supported Standards | DCI, RGB, HDR, HDR10, Dolby Vision up to 60Hz, HLG, BT.2020, BT.2100 |
| Maximum Pixel Clock | 600MHz |
| Audio Formats (Pass-through) | HDMI: 8ch LPCM, Multichannel bitstream up to Dolby Atmos and DTS-X |
| Audio Formats (Down-mix) | 8ch LPCM, Dolby TrueHD™, DTS Master HD |
| Maximum Sampling Rate | 192KHz |
| Maximum Audio Channels | Inputs: HDMI: 7.1Ch PCM, Dolby True HD, DTS-HD Outputs: HDMI: 7.1Ch PCM, Dolby True HD, DTS-HD Stereo RCA: 2ch analog Digital S/PDIF: 5.1ch PCM, Dolby Digital, DTS |
| HDCP | Pass-through, 2.2 supported |
| EDID | Managed |
| RS-232 | 1x RS-232: 3-pin Pheonix, API control |
| Consumer Electronics Control (CEC) | Not Supported |
| Auto Low Latency Mode (ALLM) | Not Supported |
| Variable Refresh Rate (VRR) | Not Supported |
| Power Supply | 12V DC 1A supplied |
