The WyreStorm EXP-CON-AUD-H2 is an excellent plug and play 4K audio de-embed solution that supports full 18Gbps HDMI and HDCP 2.2 compatibility.
Audio

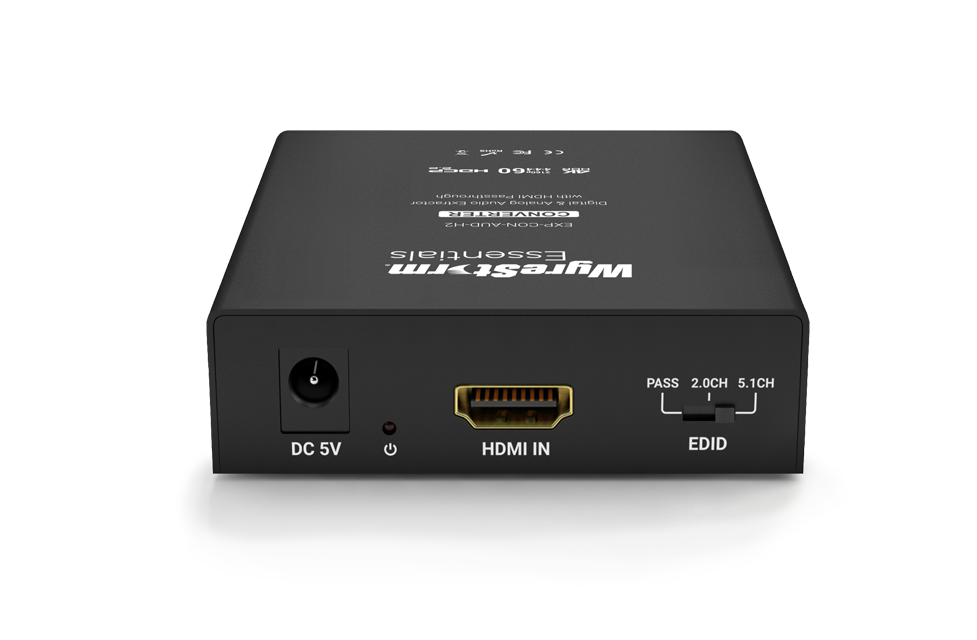

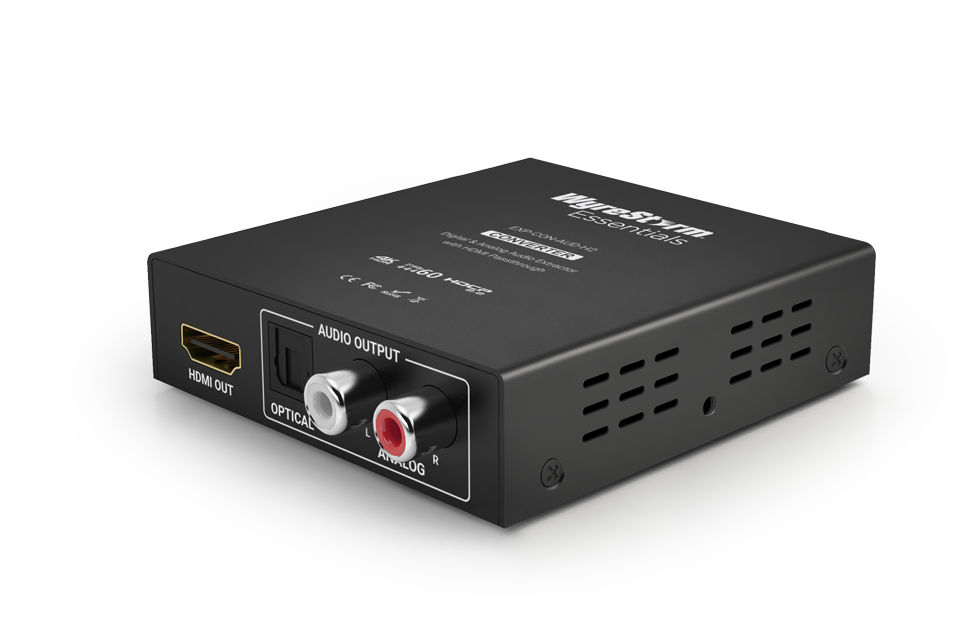

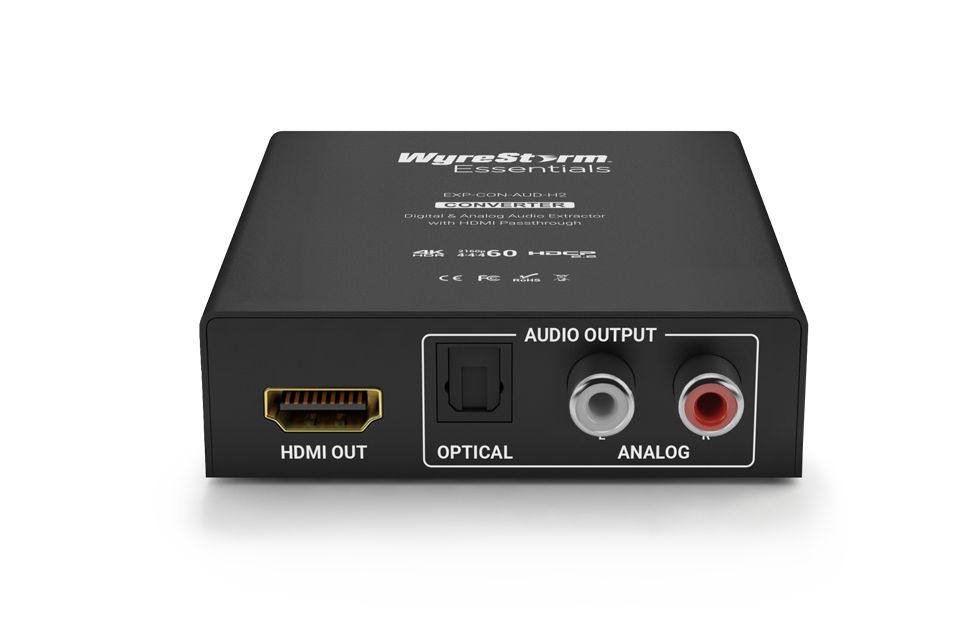

WyreStorm EXP-CON-AUD-H2 — WyreStorm Essentials™ HDMI Audio Extractor| WyreStorm
The WyreStorm EXP-CON-AUD-H2 is an excellent plug and play 4K audio de-embed solution that supports full 18Gbps HDMI and HDCP 2.2 compatibility.
| Marka | WyreStorm |
|---|---|
| Model | EXP-CON-AUD-H2 |
| Inputs | 1x HDMI in: 19-pin type A |
| Outputs | 1x HDMI Out: 19-pin type A 1x RCA Female Stereo (L/R) 1x S/PDIF TOSLINK |
| Audio Formats | HDMI: 2ch PCM, Multichannel: LPCM and up to DTS-X and Dolby Atmos Analog: 2ch LPCM Toslink: 5.1ch surround sound |
| Video Resolutions (Max) | Video Resolutions 1920x1080p @60Hz 12bit 1920x1080p @60Hz 16bit 3840x2160p @24Hz 10bit 4:2:0 HDR 3840x2160p @30Hz 8bit 4:4:4 3840x2160p @60Hz 10bit 4:2:0 HDR 4096x2160p @60Hz 8bit 4:2:0 4096x2160p @60Hz 8bit 4:4:4 HDMI 15m/49ft 7m/23ft 7m/23ft 5m/16ft 5m/16ft 5m/16ft 3m/10ft |
| Supported Standards | DCI, RGB, HDR, HDR10, Dolby Vision (Pass-Through EDID only), HLG, BT.2020, BT.2100 |
| Maximum Pixel Clock | 600MHz |
| HDMI | HDCP 2.2, DVI-D supported with adaptor (not included) |
| Power Supply | 5V DC 1A |
| Max Power Consumption | 2.88W |
| Operating Temperature | 32°F ~ 113°F (0°C ~ 45°C), 10% ~ 90%, non-condensing |
| StorageTemperature | -4°F to ~ 158°F (-20°C ~ +70°C), 10% ~ 90%, non-condensing |
| Maximum BTU | 9.83 BTU/hr |
| Rack Units/Wall Box | <1U |
| Height | 22mm/0.87in |
| Width | 80mm/3.15in |
| Depth | 90mm/3.54in |
| Weight | 0.23kg/.51lbs |
| Safety and Emission | CE, FCC, RoHS |
