The WyreStorm HAOC is a next generation HDMI cable designed for the next generation of 4K and 5K HDR content. It offers a unique feature set in both delivering uncompressed HDMI content at up to 24Gbps and compatibility with emerging HDMI technologies such as ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate) using the latest in optical transmission technology. Now established as the most powerful form of HDMI extension, WyreStorm active optical cables offer the best of both worlds: pixel-perfect long distance transmission of content and native HDMI communication. This model features a detachable RX head and is certified for fire safety.
Cables

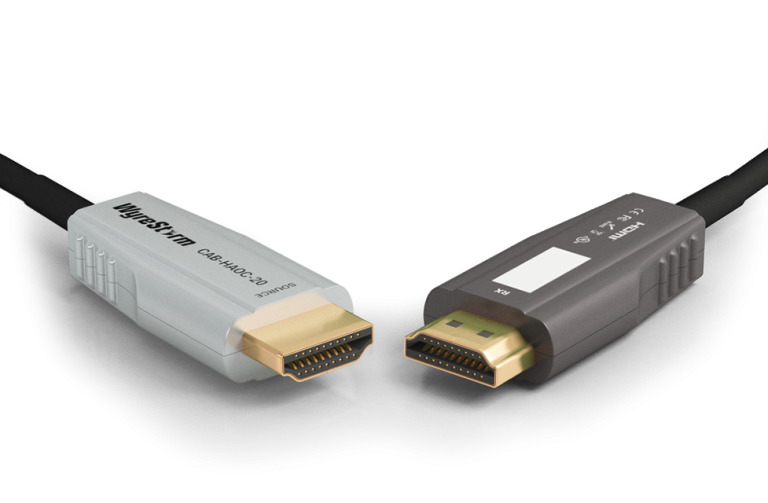

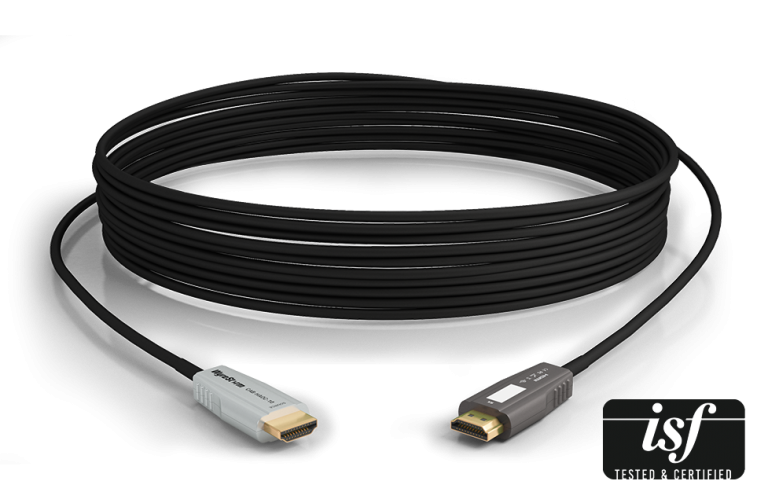

WyreStorm CAB-HAOC-xx-C — 24Gbps 4-core Active Optical HDMI Cable | 4K HDR 4:4:4/60 | Kevlar strengthened | Detachable Head | CPR Rated
The WyreStorm HAOC is a next generation HDMI cable designed for the next generation of 4K and 5K HDR content. It offers a unique feature set in both delivering uncompressed HDMI content at up to 24Gbps and compatibility with emerging HDMI technologies such as ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate) using the latest in optical transmission technology. Now established as the most
| Marka | WyreStorm |
|---|---|
| Model | CAB-HAOC-xx-C |
| Transmission Encoding | Uncompressed AOC |
| End to End Latency | 10μs |
| Max Transmission Bit Rate | 24Gbps (4-core, 6Gbps per lane) |
| HDMI | (v2.0b) TMDS, 600MHz Maximum, (v2.1) FRL (Fixed Rate Link), 16b/18b encoding |
| Input | 1x HDMI: 19-pin type A Male |
| Output | 1x HDMI: 19-pin type D Male, Type A Detachable Head |
| Maximum Data Rate | 22.28 Gbps |
| Video Resolutions (Max) | 1920 x 1080p @120Hz 2560 x 1440p @144Hz 3840 x 2160p @60Hz 10bit HDR 4:2:0 3840 x 2160p @60Hz 12bit HDR 4:2:2 3840 x 2160p @60Hz 10bit HDR 4:4:4 3840 x 2160p @60Hz 10bit HDR RGB 5120 x 2880p @30Hz 10bit HDR 4:4:4 |
| Supported Standards | DCI, Static HDR, HDR10+, Dolby Vision, HLG, SL-HDR1, PQ, BT.2020, BT.2100 |
| Audio Formats | 2ch PCM, Multichannel LPCM, DTS-X, Dolby Atmos |
| Maximum Sampling Rate | 192KHz |
| Maximum Audio Channels | 32 |
| Audio Return Channel (ARC) | Supported |
| HDCP | Pass-through, 2.3 Supported |
| EDID | Pass-through, RX>TX |
| Ethernet | 100Mbps Supported |
| Consumer Electronics Control (CEC) | Supported |
| Variable Refresh Rate (VRR) | Supported |
