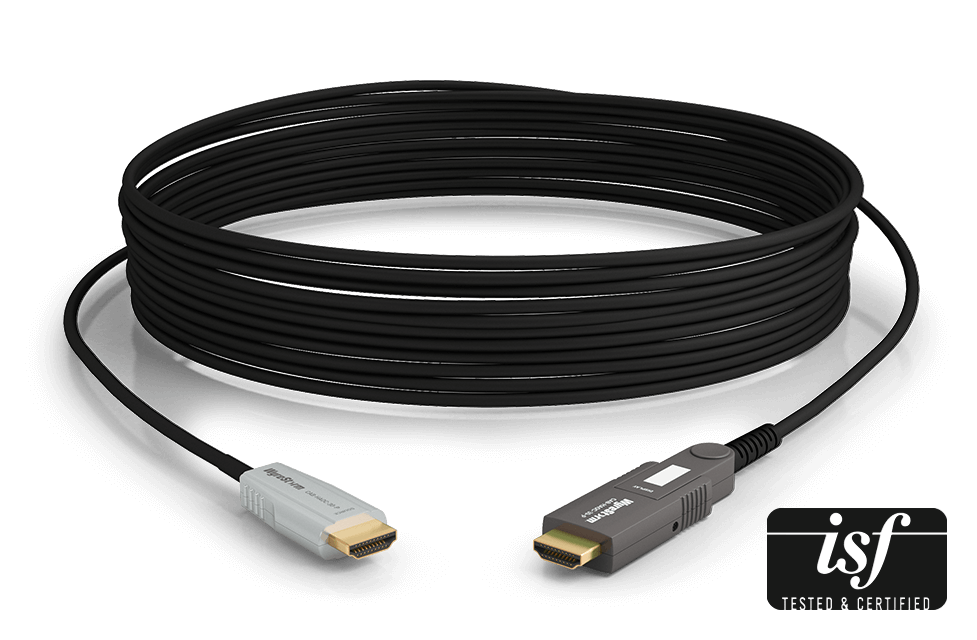

WyreStorm CAB-HAOC-30-P — 24Gbps 4-core Active Optical HDMI Cable | 4K HDR 4:4:4/60 | Kevlar strengthened | Detachable Head | Plenum & FT6 Rated
,

WyreStorm CAB-HAOC-30-P — 24Gbps 4-core Active Optical HDMI Cable | 4K HDR 4:4:4/60 | Kevlar strengthened | Detachable Head | Plenum & FT6 Rated

Teklif Al

DISCONTINUED The WyreStorm HAOC is a next generation HDMI cable designed for the next generation of 4K and 5K HDR content. It offers a unique feature set in both delivering uncompressed HDMI content at up to 24Gbps and compatibility with emerging HDMI technologies such as ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate) using the latest in optical transmission technology. Now established

Stok kodu: CAB-HAOC-30-P Kategoriler: ,

DISCONTINUED The WyreStorm HAOC is a next generation HDMI cable designed for the next generation of 4K and 5K HDR content. It offers a unique feature set in both delivering uncompressed HDMI content at up to 24Gbps and compatibility with emerging HDMI technologies such as ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate) using the latest in optical transmission technology. Now established as the most powerful form of HDMI extension, WyreStorm active optical cables offer the best of both worlds: pixel-perfect long distance transmission of content and native HDMI communication. This model features a detachable RX head and is certified for fire safety.

Marka

WyreStorm
Model

CAB-HAOC-30-P
Transmission Encoding

Uncompressed AOC
End to End Latency

10μs
Maximum Transmission Bit Rate

24Gbps (4-core, 6Gbps per lane)
HDMI

(v2.0b) TMDS, 600MHz Maximum, (v2.1) FRL (Fixed Rate Link), 16b/18b encoding
Input

1x HDMI: 19-pin type A Male
Output

1x HDMI: 19-pin type D Male, Type A Detachable Head
Maximum Data Rate

22.28 Gbps
Video Resolutions (Max)

1920 x 1080p @120Hz 2560 x 1440p @144Hz 3840 x 2160p @60Hz 10bit HDR 4:2:0 3840 x 2160p @60Hz 12bit HDR 4:2:2 3840 x 2160p @60Hz 10bit HDR 4:4:4 3840 x 2160p @60Hz 10bit HDR RGB 5120 x 2880p @30Hz 10bit HDR 4:4:4 30m/98ft
Supported Standards

DCI, Static HDR, HDR10+, Dolby Vision, HLG, SL-HDR1, PQ, BT.2020, BT.2100
Audio Formats

2ch PCM, Multichannel LPCM, DTS-X, Dolby Atmos
Maximum Sampling Rate

192KHz
Maximum Audio Channels

32
Audio Return Channel (ARC)

Supported
HDCP

Pass-through, 2.3 Supported
EDID

Pass-through, RX>TX
Ethernet

100Mbps Supported
Consumer Electronics Control (CEC)

Supported
Auto Low Latency Mode (ALLM)

Supported
